Amgo PRO-12SX 12,000 lb. 4 Post Lift Truck Service Combo
The PRO-12SX is a perfect car lift to work on regular everyday vehicles up to 12,000lbs. With air-released safety locks for convenient operation and consistent reliability, this lift will more than meet your everyday service needs.
Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components.

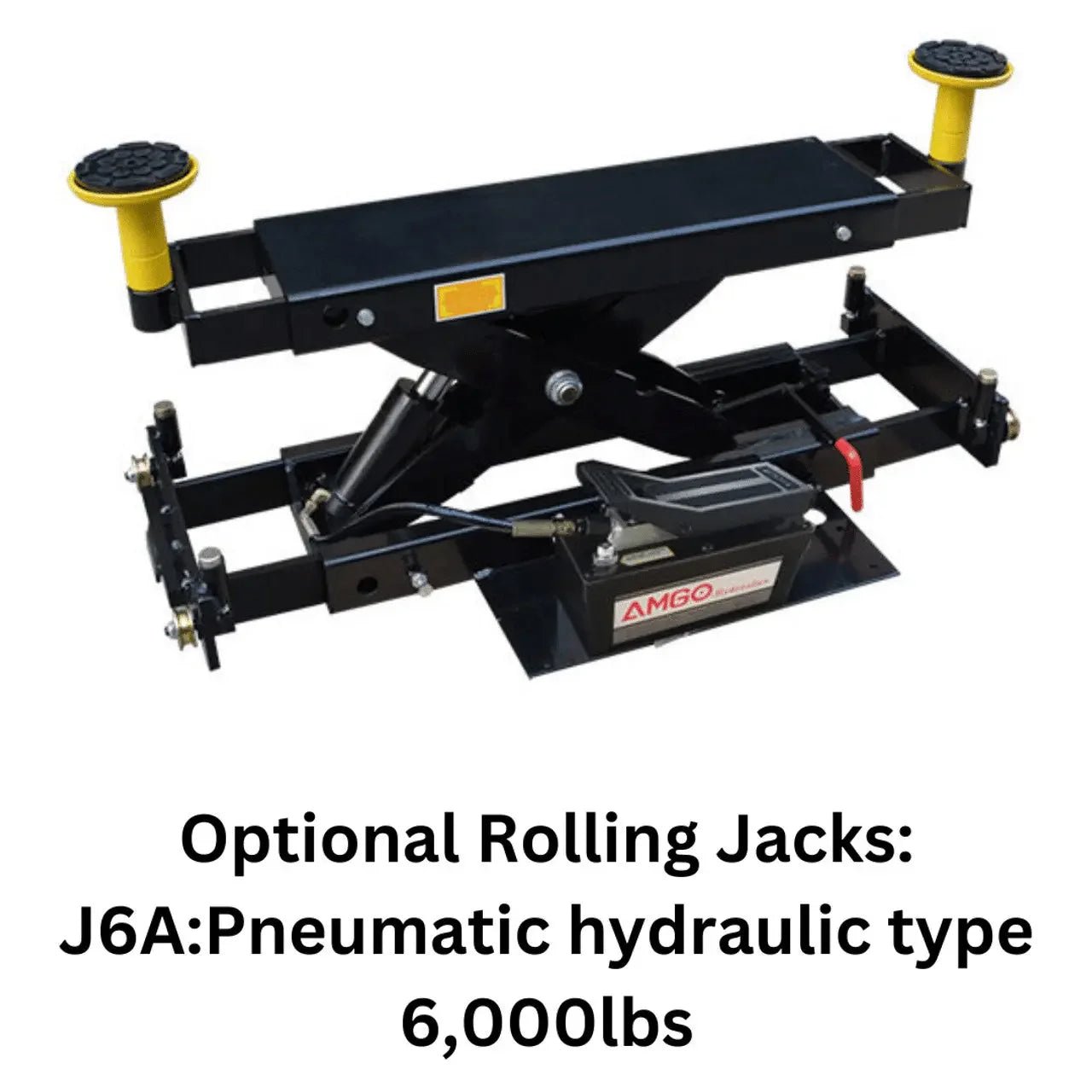

AMGO’s powerful and easy-to-use J6A is made with the same quality componentry and standards as AMGO lifts, with safety as the utmost priority. AMGO manufactures the J6A in accordance to high-quality standards. We use critical materials and parts choosing along with advanced features and innovative technology when producing the J6A. High quality parts make the J6A more reliable, with greater longevity, while requiring less service.
Product Features
- 12,000 lbs capacity.
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.

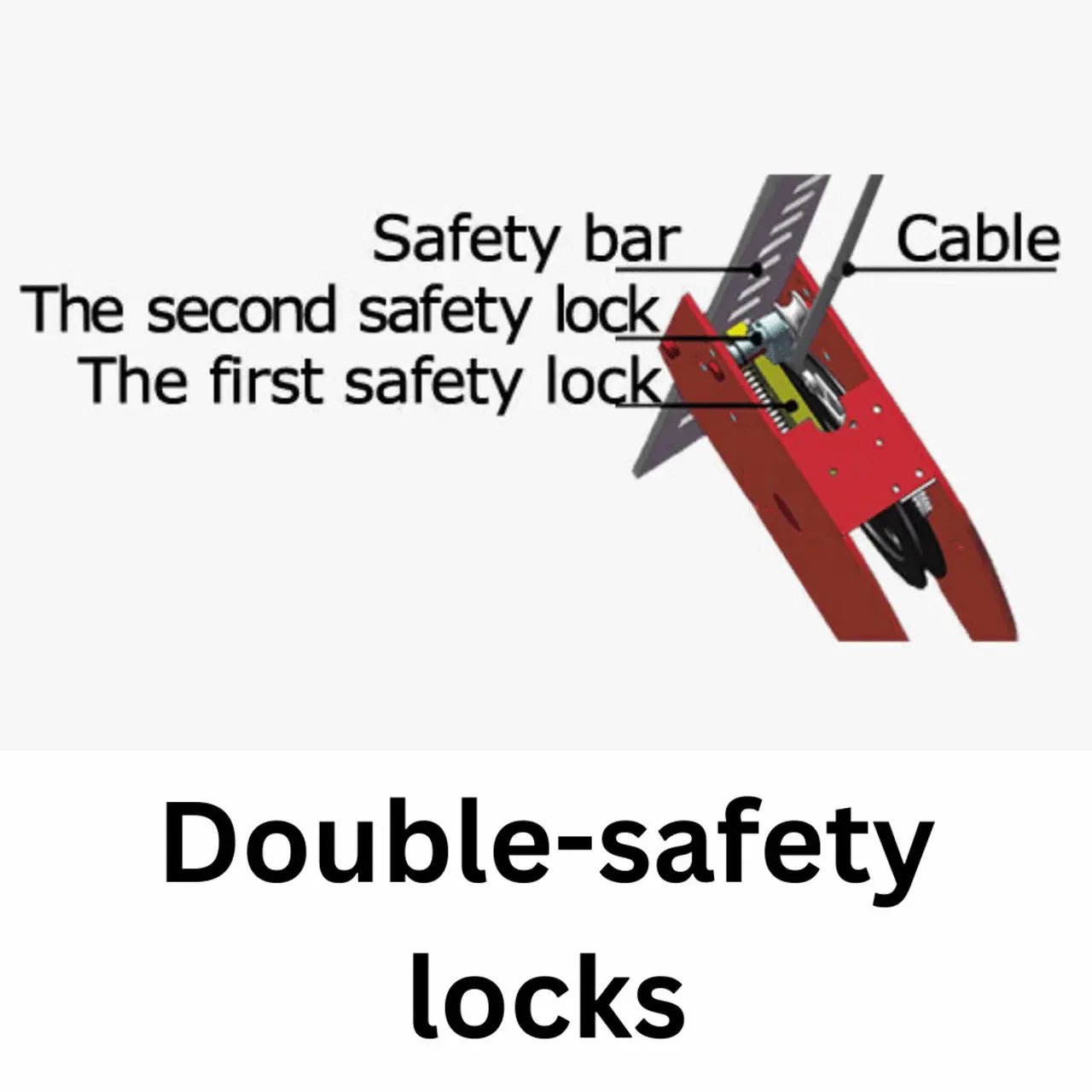

- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.
- Stepless adjustable width between platforms.
Product Specifications

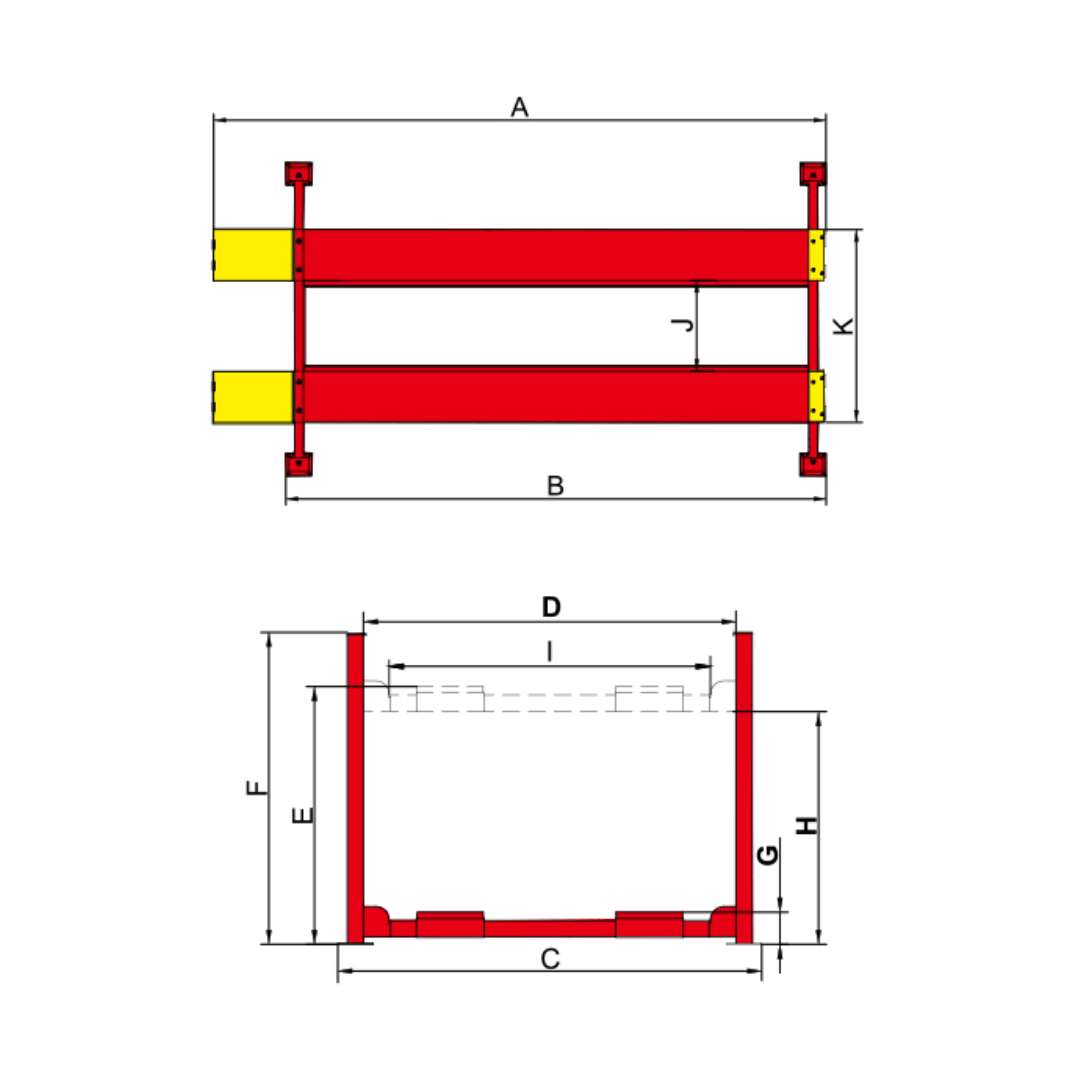

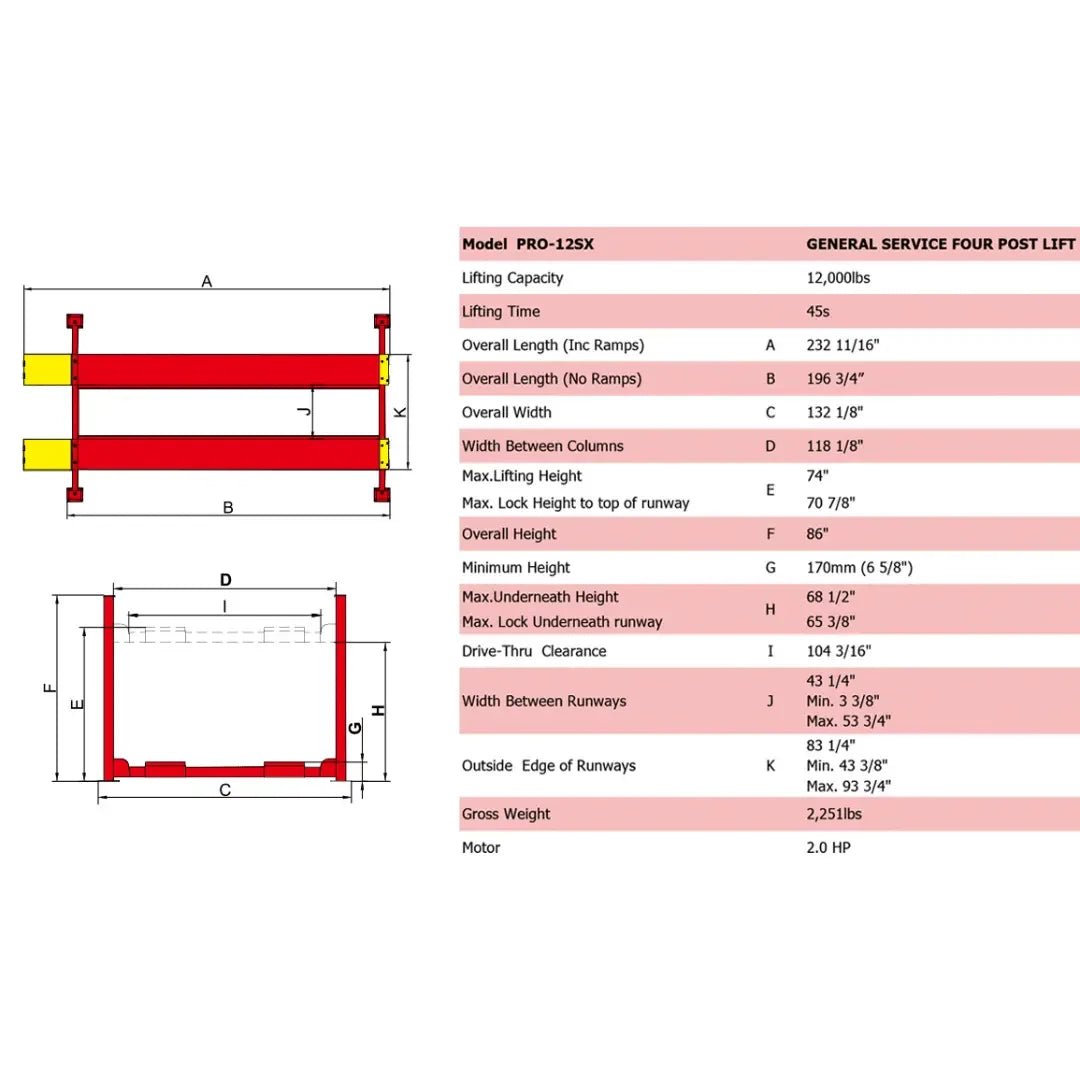

| Model | PRO-12SX |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 45S |
| A: Overall Length (Inc.Ramps) | 232 11/16″ |
| B: Overall Length (No.Ramps) | 196 3/4″ |
| C: Overall Width | 132 1/8″ |
| D: Width Between Columns | 118 1/8″ |
| E: Max. Lifting Height | 74″ |
| E: Max. Lock Height to Top of Runway | 70 7/8″ |
| F: Overall Height | 86″ |
| G: Minimum Height | 6 5/8″ |
| H: Max. Underneath Height | 68 1/2″ |
| H: Max. Lock Underneath Runway | 65 3/8″ |
| I: Drive-Thru Clearance | 104 3/16″ |
| J: Width Between Runways | 43 1/4″, Min. 3 3/8″, Max. 53 3/4″ |
| K: Outside Edge of Runways | 83 1/4″, Min. 43 3/4″, Max. 93 3/4″ |
| Gross Weight | 2,251 lbs |
| Motor | 2.0HP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
