Description
Product Description

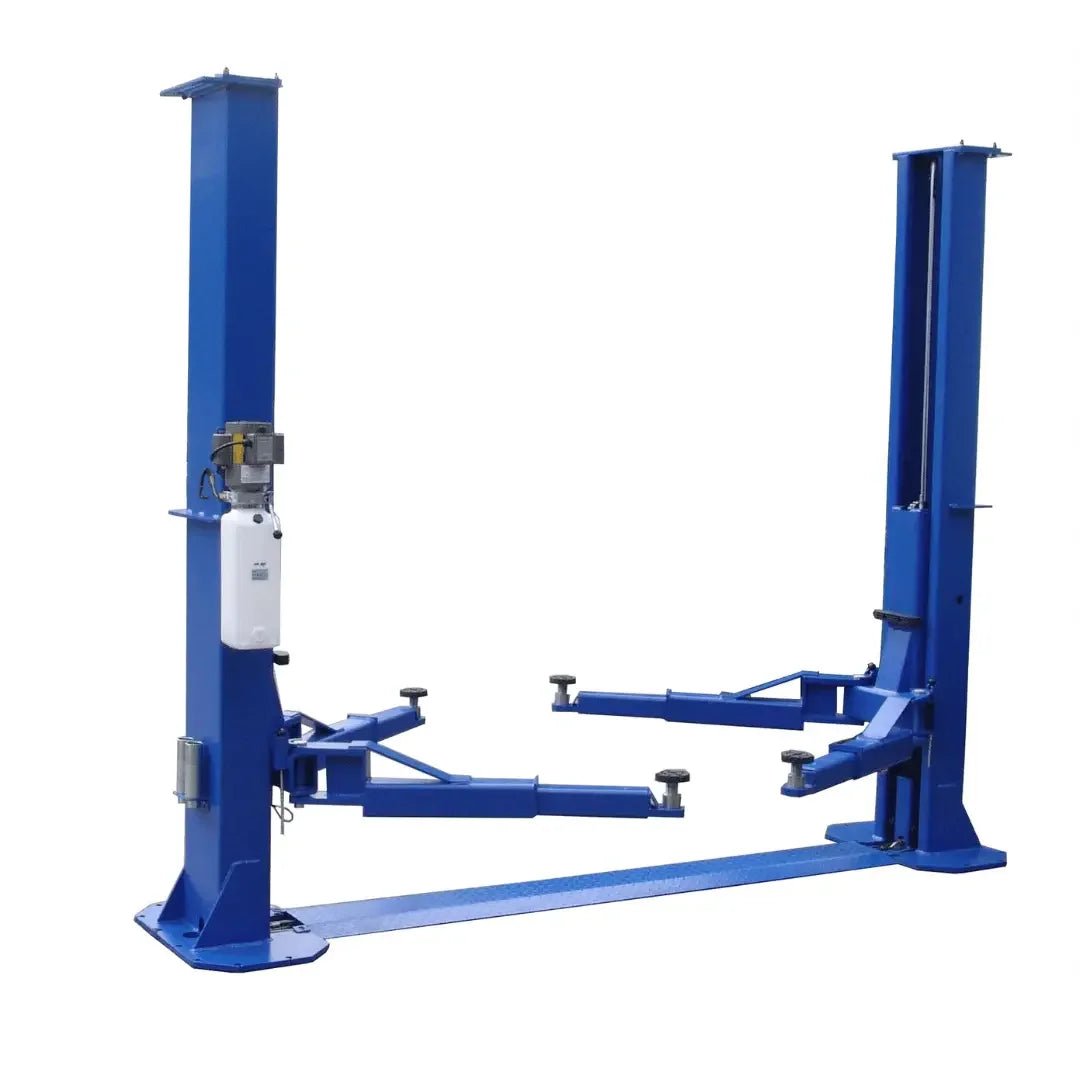

TP12KFX Two Post Floor Plate
Product Features
- 12,000 lbs Capacity
- Symmetric arm design

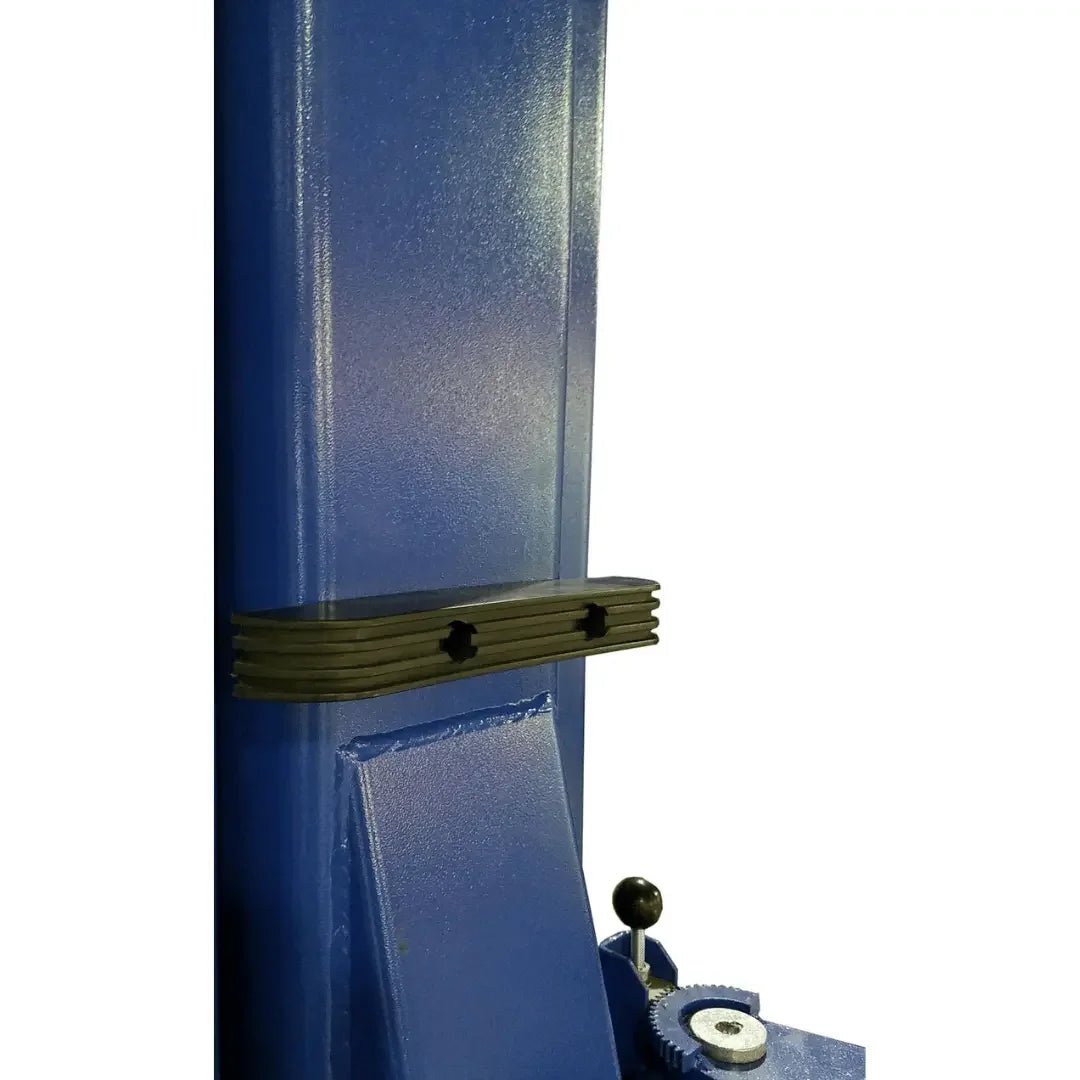

- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- Auto Arm Restraint System

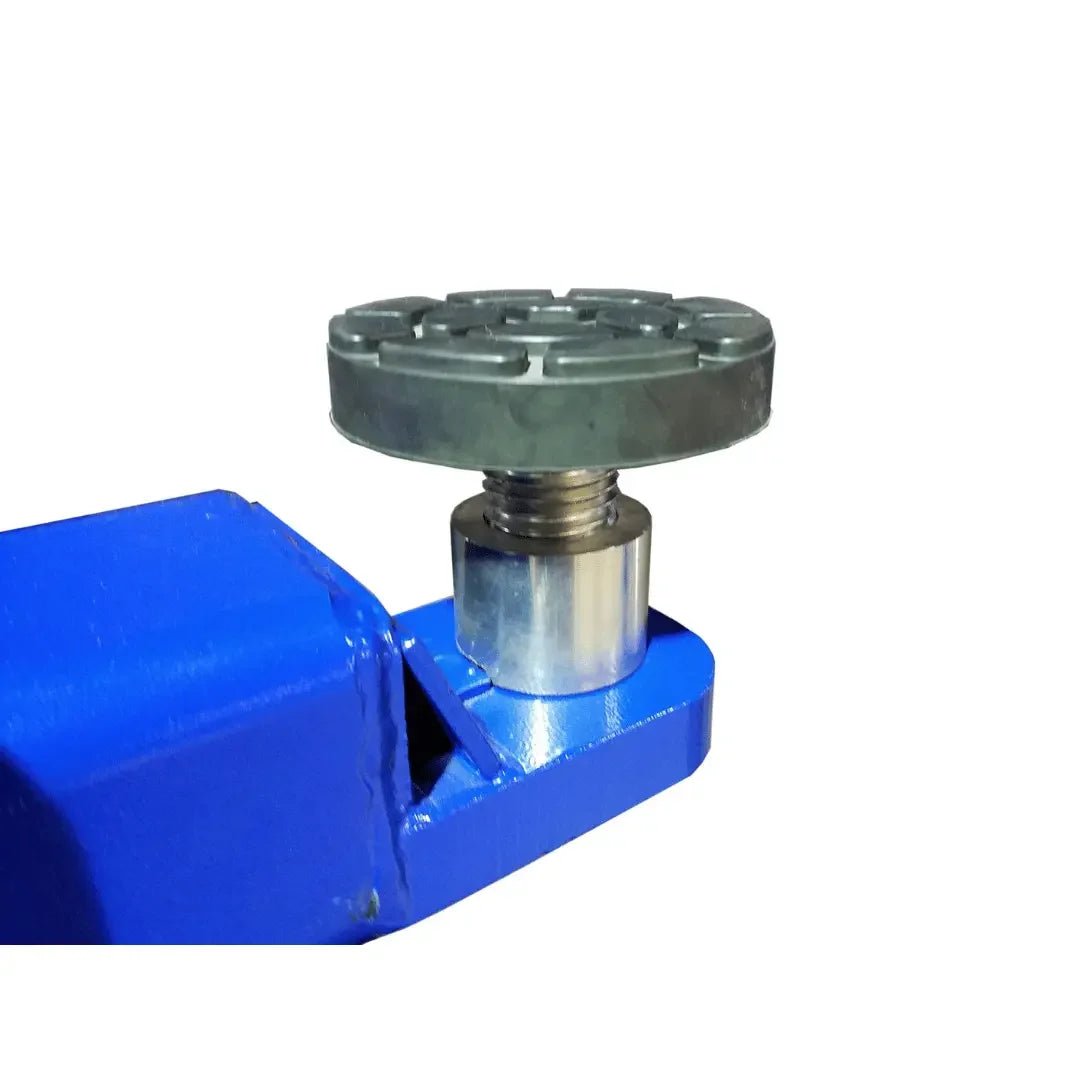

- Spin Up Lift Pads
- Stackable Adapters Included
- Internal hose guards

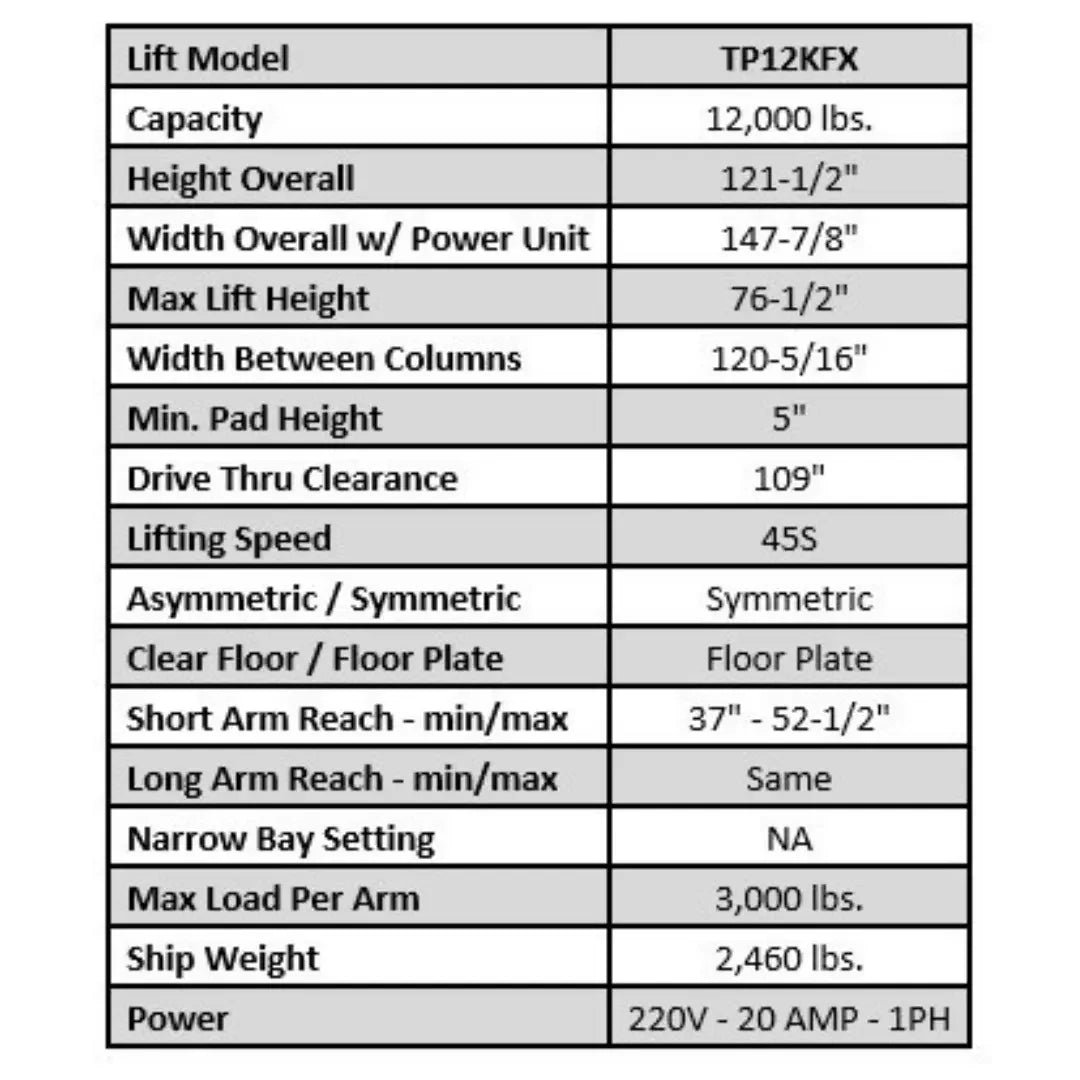

Product Specifications
| Lift Model | TP12KFX |
|---|---|
| Capacity | 12,000 lbs |

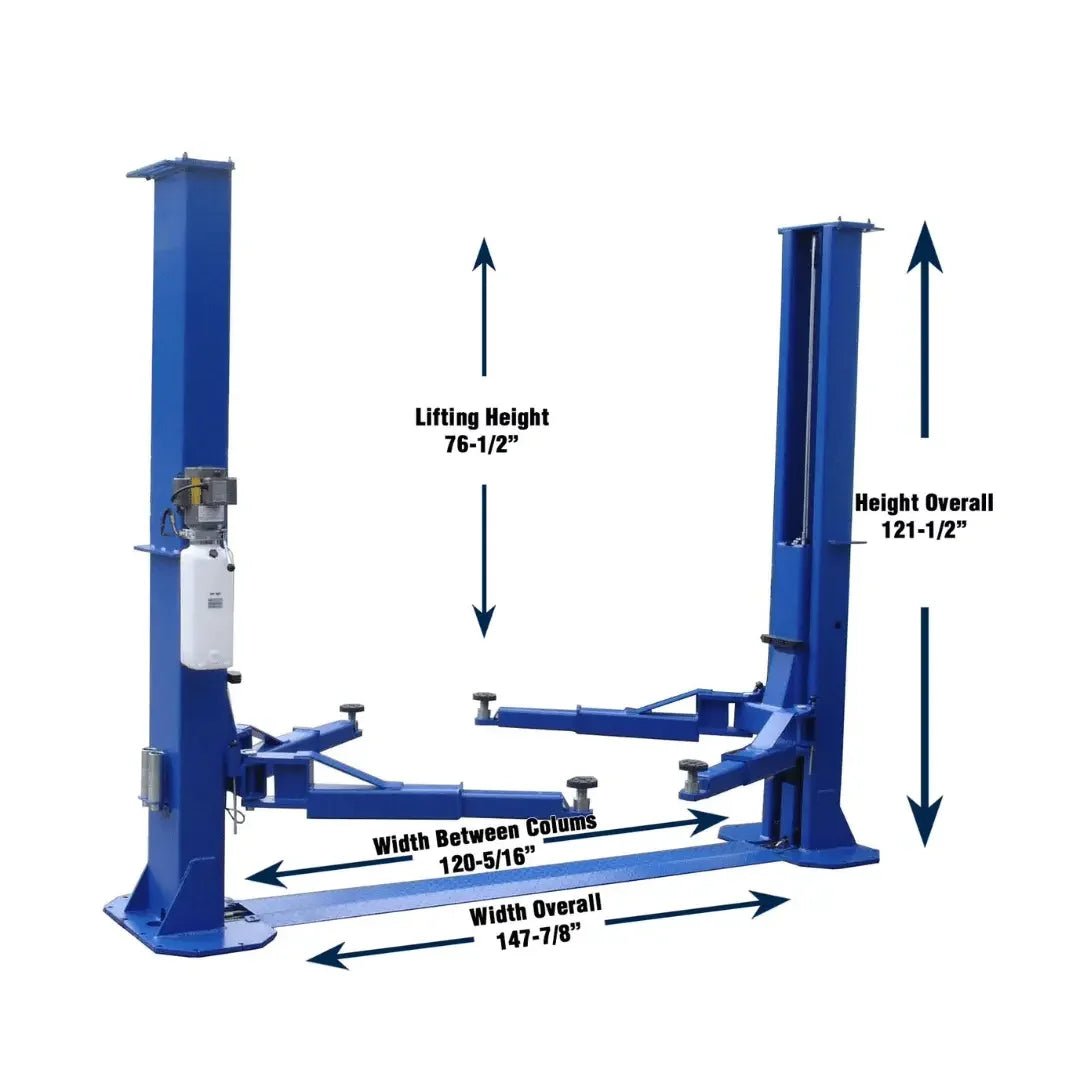

| Height Overall | 121-1/2″ |
| Width Overall w/ Power Unit | 147-7/8″ |
| Max Lift Height | 76-1/2″ |
| Width Between Columns | 120-5/16″ |
| Min. Pad Height | 5″ |
| Drive Thru Clearance | 109″ |
| Lifting Speed | 45S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Short Arm Reach – min/max | 37″ – 52-1/2″ |
| Long Arm Reach – min/max | 37″ – 52-1/2″ |
| Max Load Per Arm | 3,000 lbs |
| Ship Weight | 2,460 lbs |
| Power | 220V – 20 Amp – 1PH |
Pick Up and Delivery
Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California – Orlando, Florida – Norcross, Georgia – Elwood, Indiana – St. Cloud, Minnesota – Reidsville, NC – Pottsville, Pennsylvania – Alvarado, Texas – West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
