10,000 lbs Car Lift L1100 2 Post overhead Car Auto Truck Hoist 220V OR 110V

Description

L1100 2-Post Car Lift Auto Truck Hoist 10,000 lb Overhead Clear Floor 220V

Auto Car Lift  L1100 220V  60HZ  1PH   3HP MOTOR features Symmetrical Arm Assembly with Straight Front / Rear 2 Stage reach from 30 1/4″ to 49 1/5″ and Equal length of front and rear arm design Drop-in type lifting pads and truck adapters are included.

Features:

Safety Mechanism:

• Double Point Safety Lock Release

• Automatic arm lock restraints

• Relief valve built in power pump to prevent overloading

• Door guards protection rubber

• Up-limit switch to protect cylinders working stroke used in safe length scope

• Heavy duty 5/16″ diameter cable and 4.56″ pulley reduce high stress on synchronization process and increase cable life

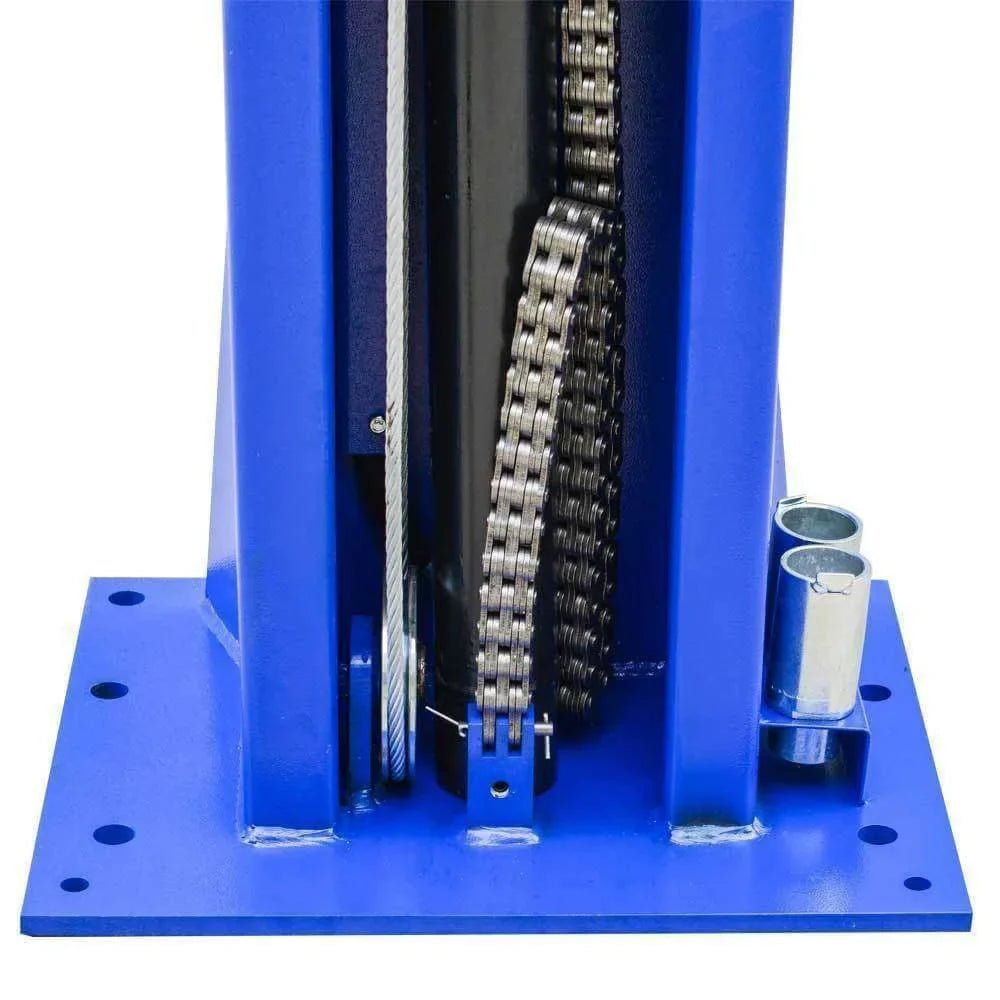

• Stiffened base plate 5/8″ thickness

• Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down

• Anchor bolts/mounting hardware included

Control System:

• Lifting operation by pressing “UP” button on motor

• Manual lowering operation by pressing lever

• Relief valve built in power pump to prevent overloading

• 1 sets truck adapters included

• Lifting Capacity: 10,000 lbs

• The overall Height  145-5/8″

• The overall Width  133-1/4″

• Column Width    10.62″

• Base Width   18.89″

• Column Thickness of Steel    3/16″

• Carriage Thickness of Steel   15/64″

• Arms Thickness of Steel     15/64″

• Front Arm   30.7″ to 48

• Rear Arm  30.7″ to 48″

• Min pad height: 3-7/8″

• Lift height max: 78-7/8″

• Drive-thru width clearance: 100″

• Time to full rise: 20-60 sec

• Shipping Weight: 1460 lbs

Site Selection:

Before installing your auto lift, check the following:

• Lift Location: Always use architect’s plans when available.

• Check layout dimension against floor plan requirements making sure adequate space is available.

• Your lift requires a 220v, 30amp, single phase, grounded electrical source.  There should be room enough to operate the lift in a safe manner and without restrictions.

•  Overhead Area: The area where the lift will be located should be free of overhead obstructions such as heaters, building supports, electrical lines, doors, lights, etc.

•  Floor Area: Visually inspect the site where the lift is to be installed and check for cracked or defective concrete.

Floor Requirements:

• A level floor is suggested for proper installation and level lifting.  Small differences in floor slopes may be compensated for by proper shimming.  If a floor is of questionable slope, consider a survey of the site and/or the possibility of pouring a new level concrete slab.

•  New concrete must be adequately cured for at least 30 days.

• DO NOT install auto lift on any asphalt surface or any surface other than concrete.

• DO NOT install auto lift on expansion seams or on cracked or defective concrete.

• DO NOT install auto lift on a second/elevated floor without first consulting building architect.

• DO NOT install auto lift outdoors unless special consideration has been made to protect the power unit from inclement weather conditions.

Concrete Specifications:

All models MUST be installed on 3,000 PSI reinforced concrete only.  Additional concrete requirements will vary by lift.

• 8,500 lbs – 10,000 lbs lifts: 4″ Minimum Thickness

• 11,000 lbs – 15,000 lbs lifts: 6″ Minimum Thickness

specifications:

• Condition: New
• Modified Item: No
• Custom Bundle: No
• Material: Metal
• Capacity: 10000lbs.
• Type: 2-Post Lift
• Features: Hydraulic
• Vehicle Type: Passenger Vehicle
• Brand: ,XK USA

Shipping Information:

• Free Shipping: Residential delivery within 5 to 8 days to all U.S. states.
