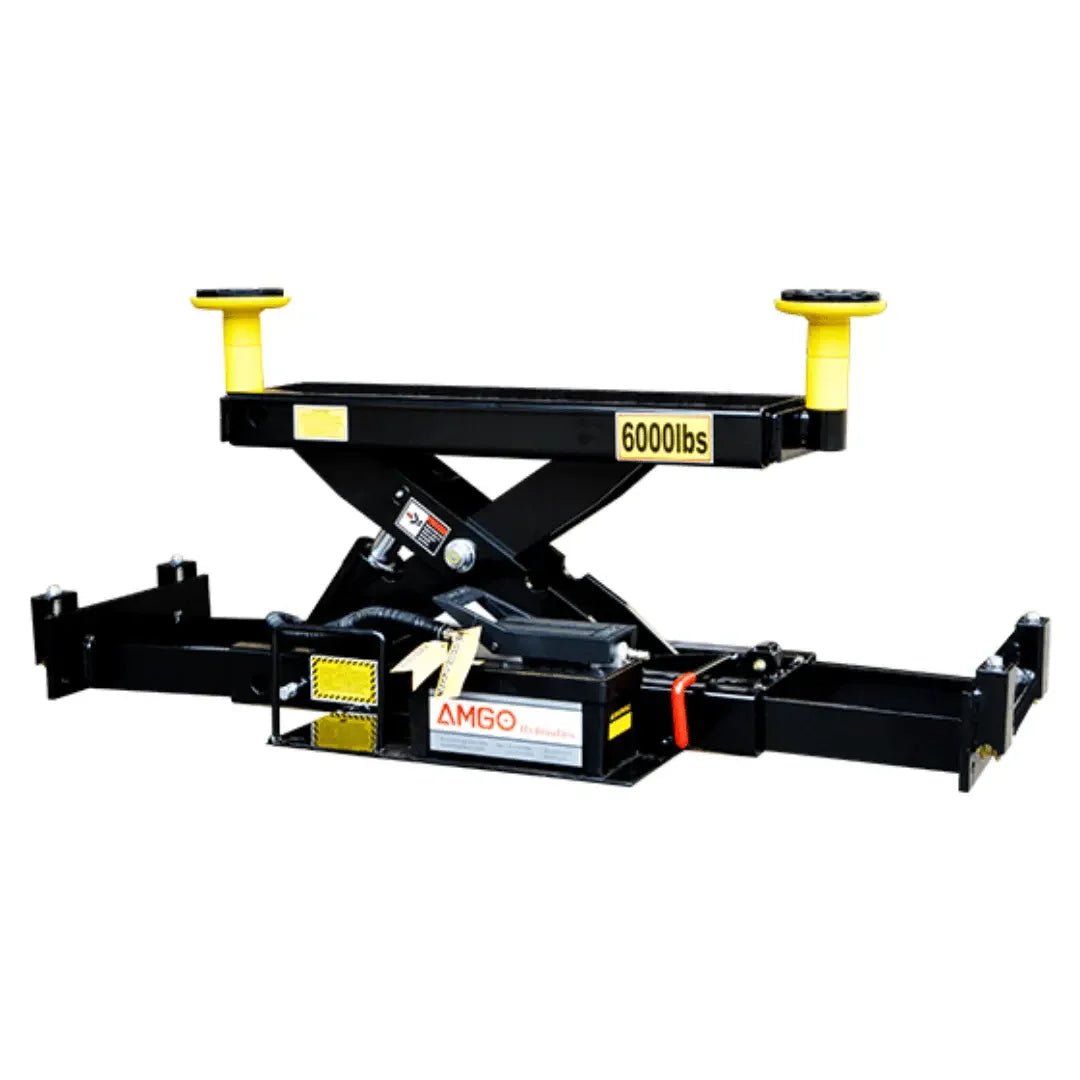

Amgo J6A 6,000 lb Rolling Jack
AMGO J6A is an ideal addition to any four-post & scissors lift below 12,000lbs capacity. Serving as an upgraded version of J6H, the J6A offers almost same features such as floating rolling technology and low profile design. The main improvement lies in the pump, utilizing AMGO pneumatic hydraulic pump instead of handle pump to offer a more convenient operation.

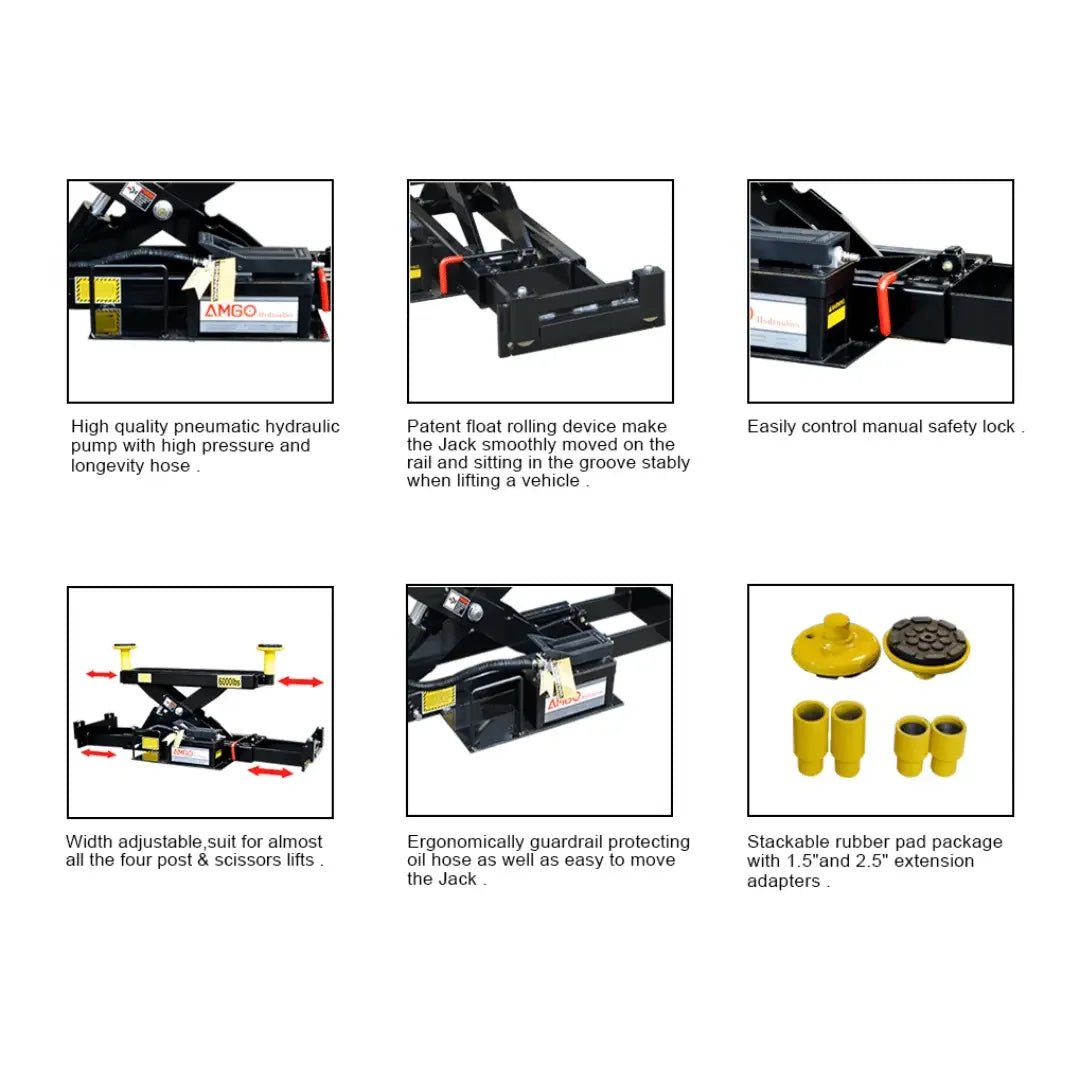

Product Features
- Equipped with pneumatic hydraulic pump.
- Come standard with 1.5″, 2.5″ extension adapters & durable Rubber Pads Assy.
- Adjustable arms for easy position and adjust to the desired supporting point.
- Manual safety lock provides two lock positions that convenient you to find the comfortable work height.
- Extendable lower sliding Assy. fitting for width between runways from 33 11/16″ to 52 13/16″.
- Ergonomically guardrail help to protect oil hose as well as for easily moving the Jack.

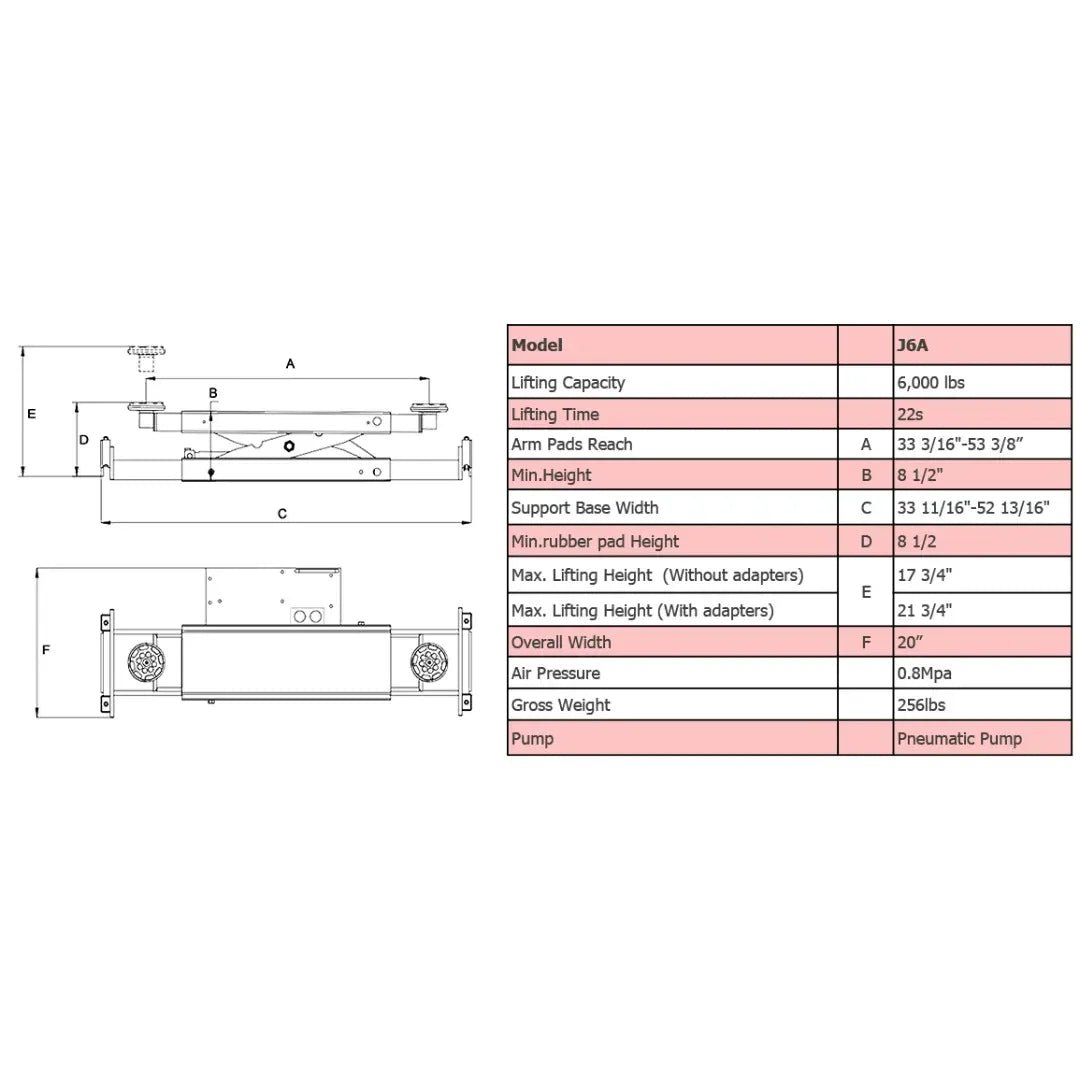

Product Specifications
| Model | J6A |
| Lifting Capacity | 6,000 lbs |
| Lifting Time | 22 Seconds |
| A: Arm Pads Reach | 33 3/16″-53 3/8″ |
| B: Min. Height | 8 1/2″ |
| C: Support Base Width | 33 11/16″-52 13/16″ |
| D: Min. Rubber Pad Height | 8 1/2″ |
| E: Lifting Height (Without Adapters) | 17 3/4″ |
| E: Lifting Height (With Adapters) | 21 3/4″ |
| F: Overall Width | 20″ |
| Air Pressure | 0.8Mpa |
| Pump | Pneuamatic Pump |
| Gross Weight | 256 lbs |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
