Description
Amgo PRO-14A 14,000 lb 4 Post Alignment Lift
The AMGO PRO-14A 14,000 lb. 4-Post Alignment Lift is the ultimate solution for automotive professionals seeking unparalleled performance and precision. This top-of-the-line lift is designed to meet the demands of modern garages, offering an impressive lifting capacity that accommodates a wide variety of vehicles, from standard cars to heavy-duty trucks. Its robust design and advanced features ensure that your alignment tasks are completed with accuracy and efficiency.
Crafted from high-strength steel, the AMGO PRO-14A is built to withstand the rigors of daily use in busy workshops. Its durable construction not only guarantees longevity but also provides a stable and secure platform for all your lifting needs. The lift’s hydraulic system is engineered for smooth and reliable operation, ensuring that vehicles are raised and lowered with ease. Safety is paramount, and this lift includes essential safety mechanisms to protect both the operator and the vehicle, giving you peace of mind as you work.
The versatility of the AMGO PRO-14A makes it an indispensable asset in any automotive setting. Whether you are performing routine maintenance, conducting detailed inspections, or carrying out precise alignment tasks, this lift delivers consistent and reliable performance. Its user-friendly design facilitates easy operation, allowing technicians to focus on their work without unnecessary complications. Elevate your workshop capabilities with the AMGO PRO-14A 14,000 lb. 4-Post Alignment Lift and experience the difference that superior engineering and thoughtful design can make.
Product Features
- 14,000 lbs capacity.
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.
- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.
- Stepless adjustable width between platforms.
- Integrated slip plates and adjustable turnplate pockets.

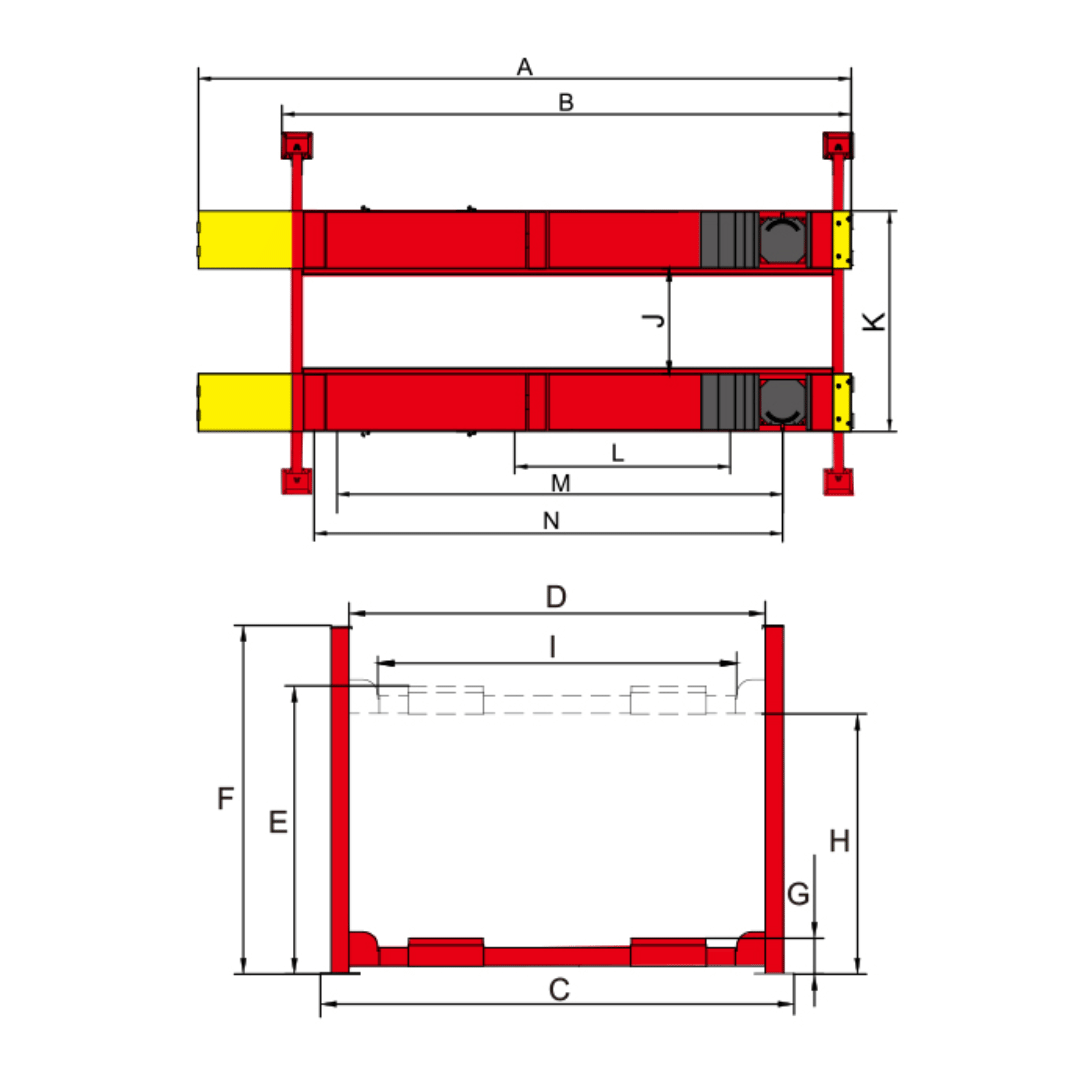

Product Specifications
| Model | PRO-14A |
|---|---|
| Lifting Capacity | 14,000 lbs |
| Lifting Time | 79S |
| A: Overall Length (Inc.Ramps) | 257″ |
| B: Overall Length (No.Ramps) | 216 9/16″ |
| C: Overall Width | 130 7/8″ |
| D: Width Between Columns | 116″ |
| E: Max. Lifting Height | 77 3/16″ |
| E: Max. Lock Height to Top of Runway | 74″ |
| F: Overall Height | 86 3/16″ |
| G: Minimum Height | 9 7/8″ |
| H: Max. Underneath Height | 68 1/2″ |
| H: Max. Lock Underneath Runway | 65 3/8″ |
| I: Drive-Thru Clearance | 102 1/16″ |
| J: Width Between Runways | 47″, Min. 3 3/8″, Max. 54 1/2″ |
| K: Outside Edge of Runways | 87″, Min. 43 3/8″, Max. 94 1/2″ |
| L: Min. Four Wheel Align | 94 5/16″ |
| M: Max. Four Wheel Align | 169 11/16″ |
| N: Max. Two Wheel Align | 176″ |
| Gross Weight | 3,3377 lbs |
| Motor | 2.0HP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
