Description
Atlas 12AWFSL 12,000 lb Capacity Alignment Scissor Lift with Wheels Free Lifts
The Atlas® 12AWFSL is a heavy-duty, commercial-grade scissor lift designed for precision alignment and general service work. With a 12,000 lb. lifting capacity and integrated wheels-free lifting capability, this full-rise scissor lift supports a wide range of passenger vehicles, SUVs, and light-duty trucks.

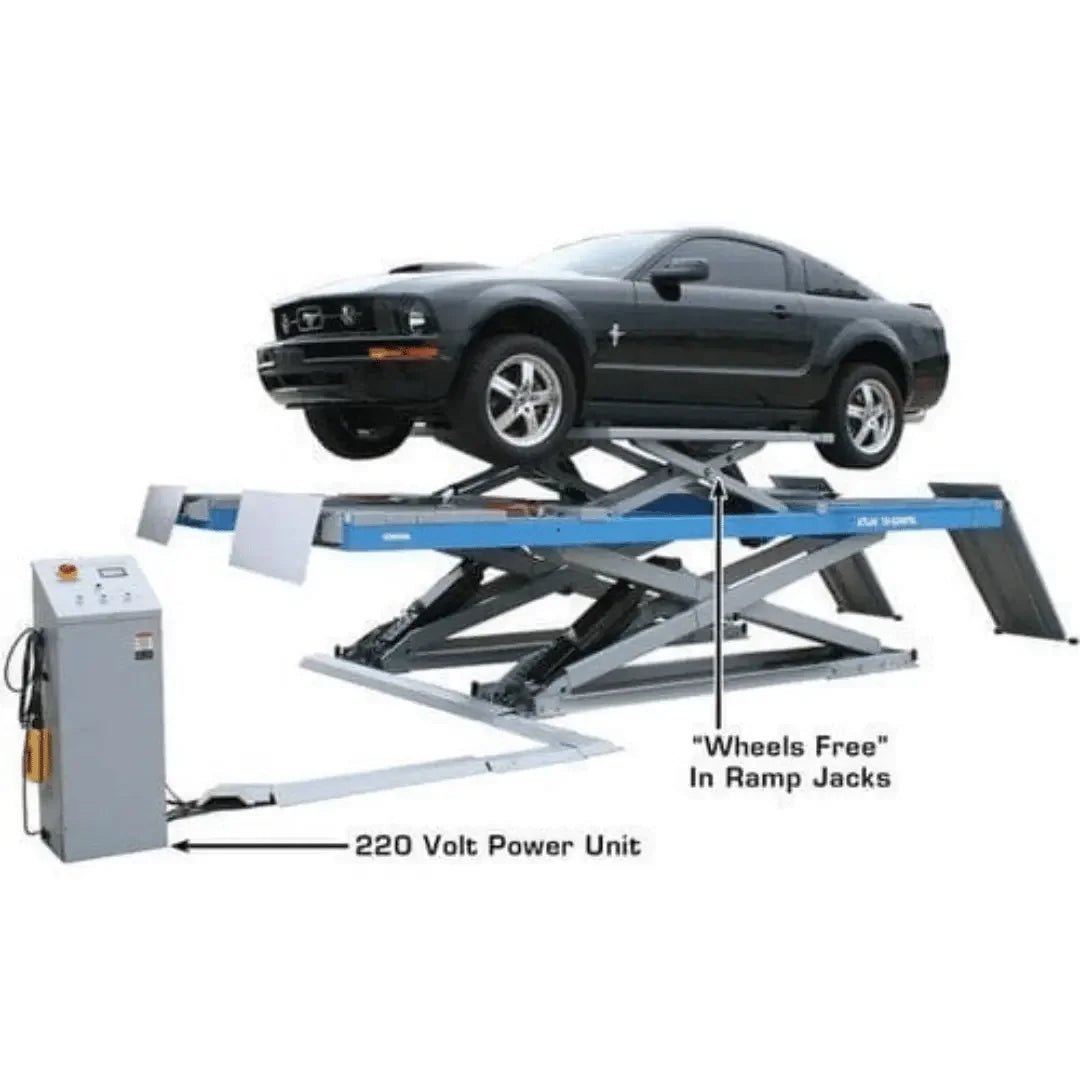

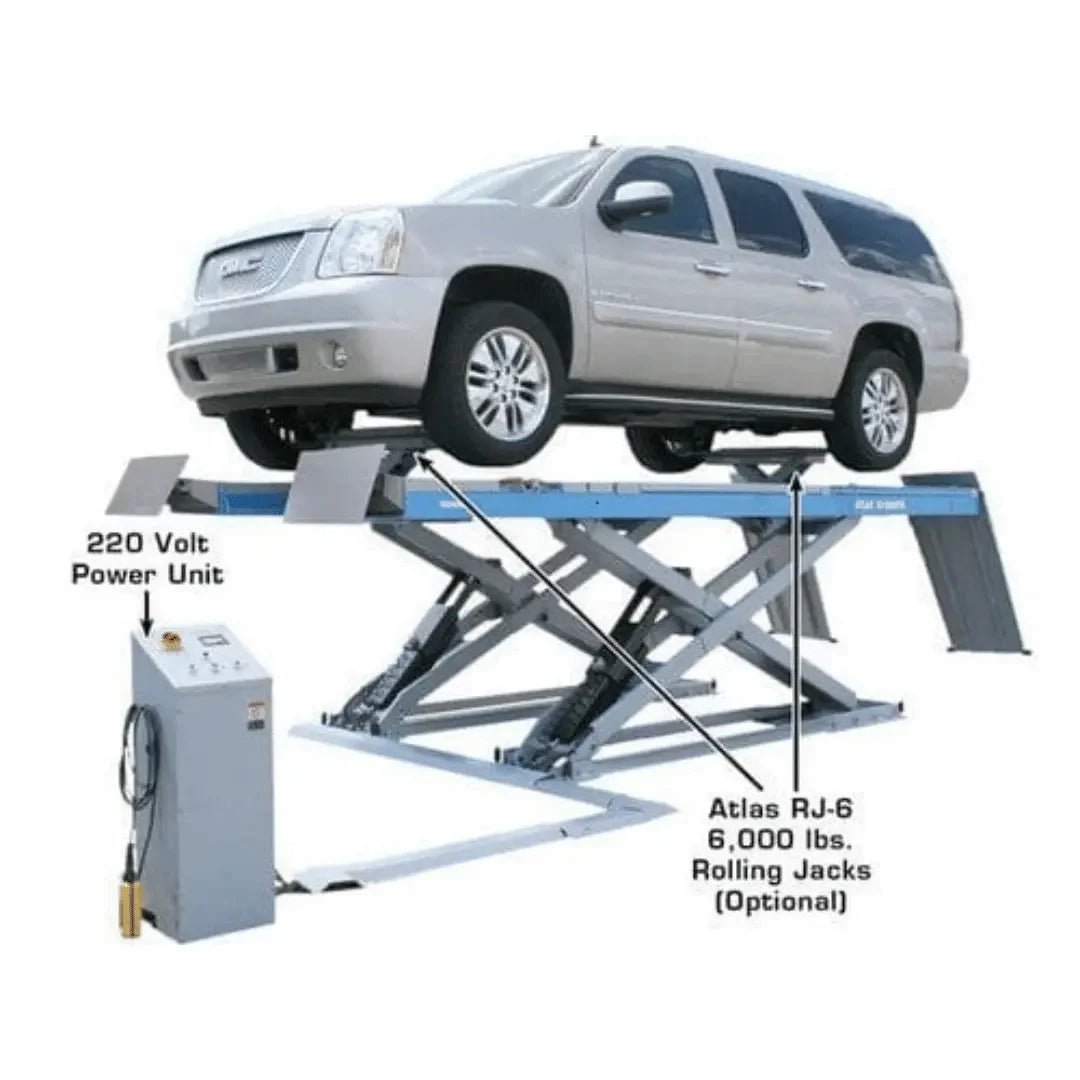

The full-length, flat-top runways provide stable support for alignment procedures, while the included rolling jacks allow operators to lift vehicles off the runways for wheel and suspension access. Dual hydraulic cylinders per platform ensure balanced lifting and smooth operation.
The lift is surface-mounted and features non-skid runways, a heavy-duty steel structure, and a compact footprint ideal for high-traffic service bays. Air-released safety locks and multiple locking positions enhance technician safety during operation.
Product Features
- 12,000 LB. Capacity
- Commercial Grade
- Scissor Alignment Lift
- Built in “Wheels Free” Lifting System

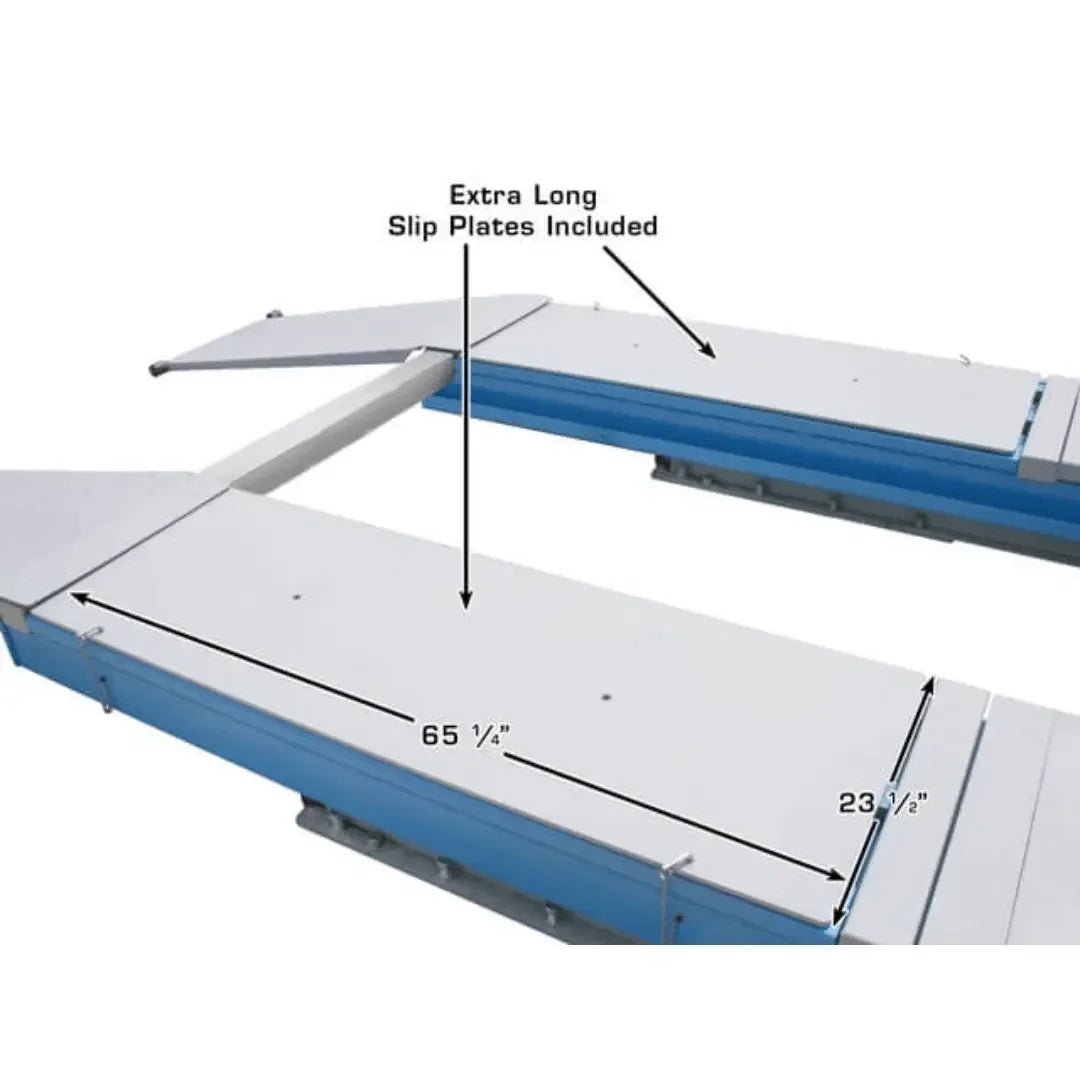

- Built in Slip Plates and Alignment Turntables Included

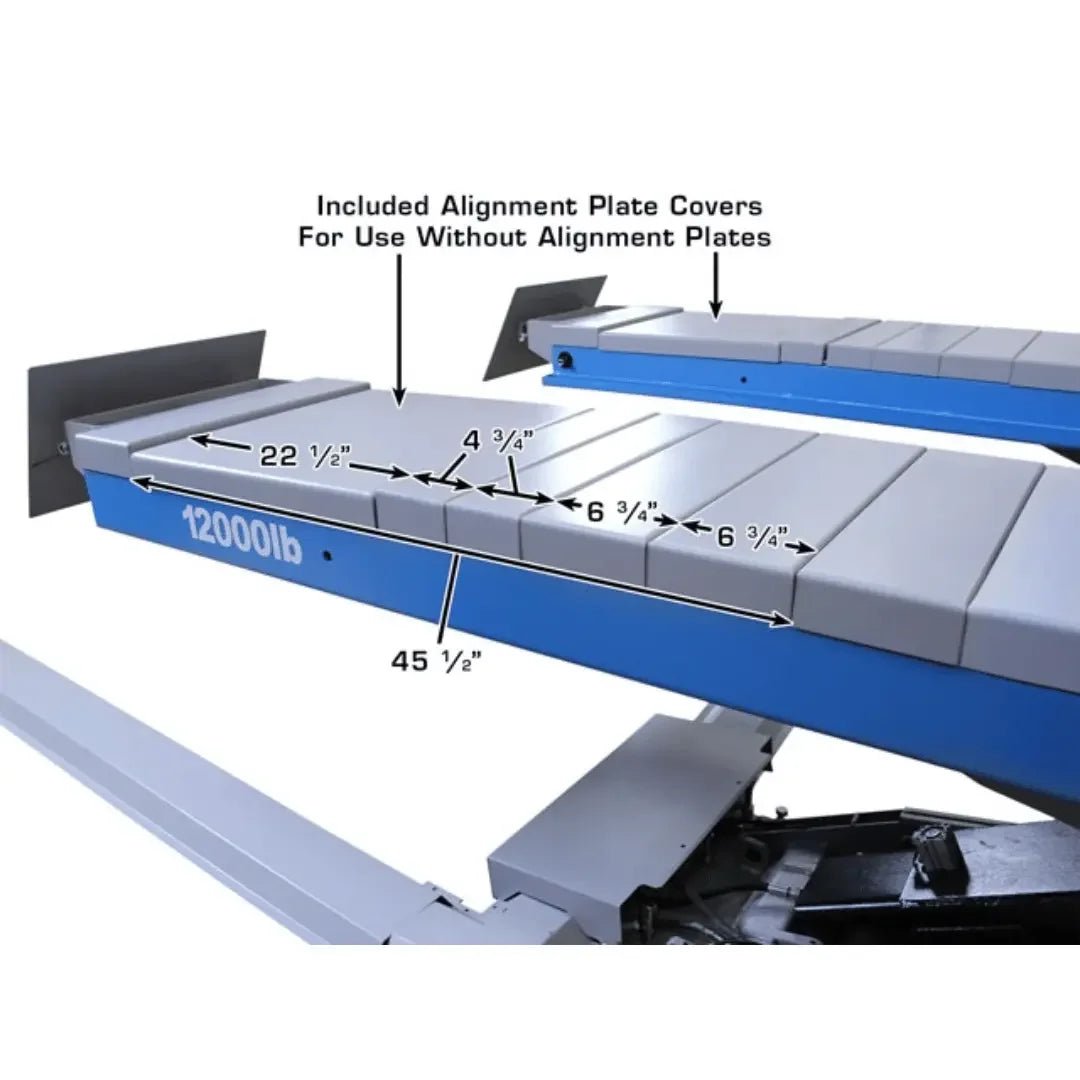

- Turntable Covers Included
- Open Center Design for Easy Access
- Air-Operated Single Point Lock Release
- Airline Kit Included

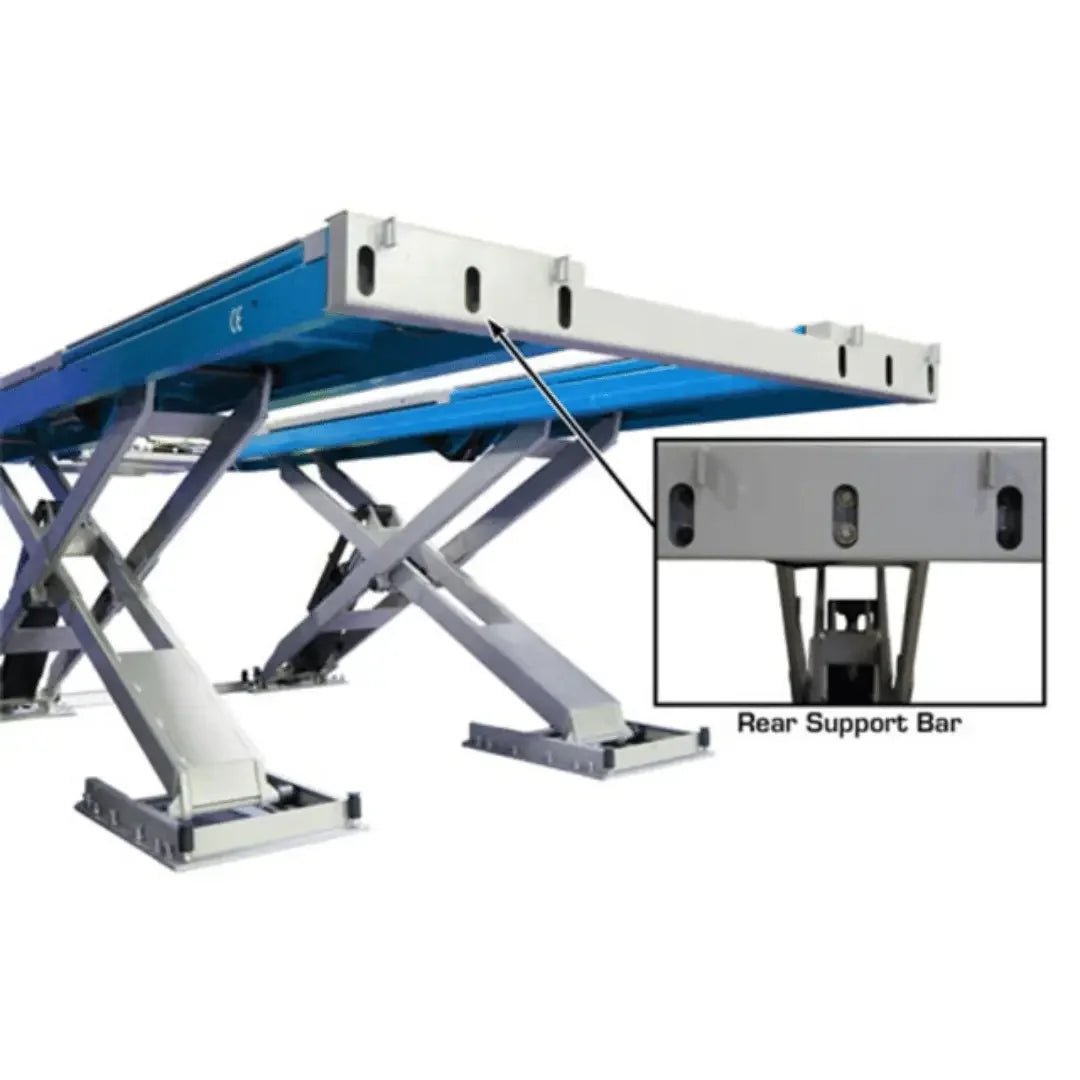

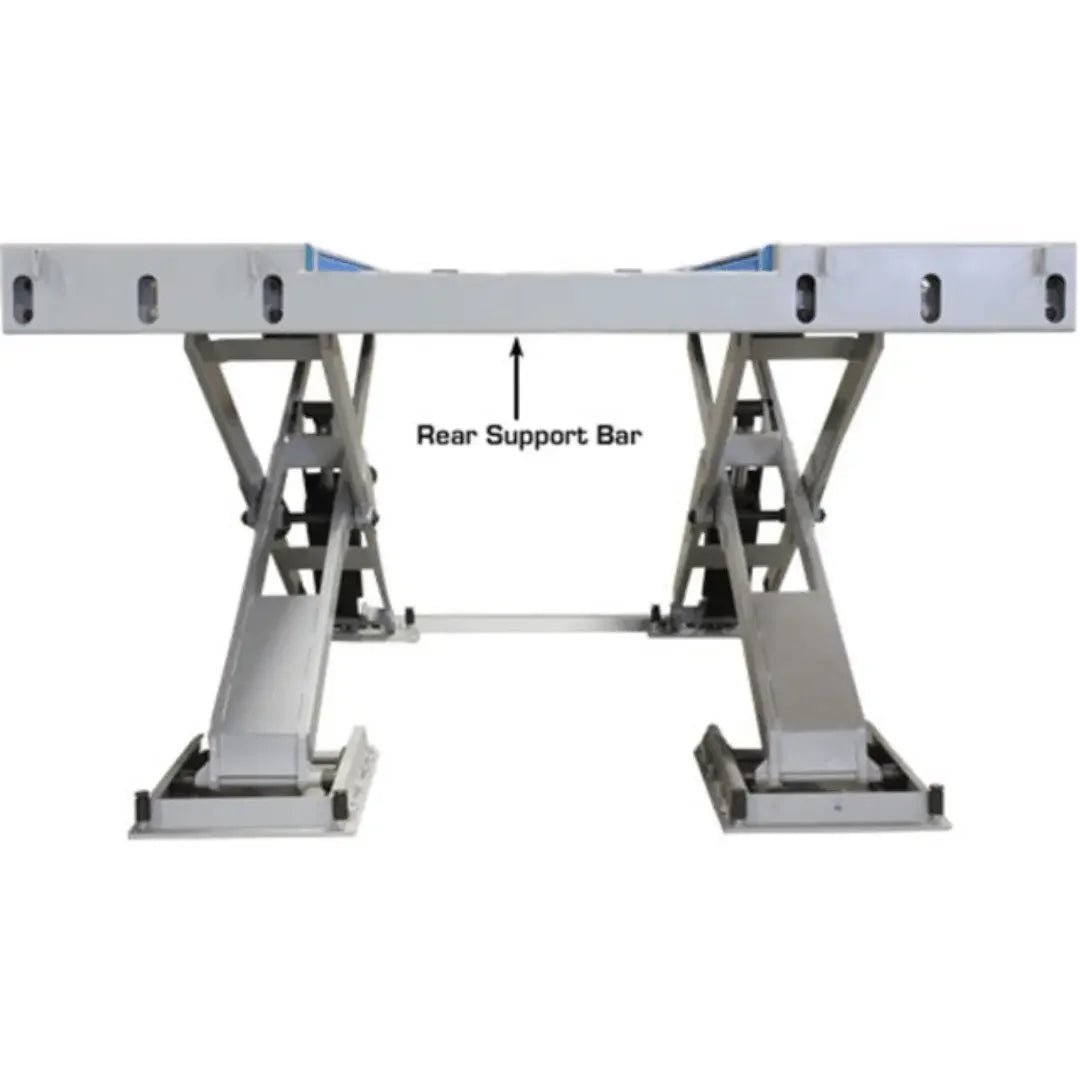

- Rear Cross Beam for Extra Stability
- Extra Long 72″ Ramps
- Precise Platform Leveling Accuracy

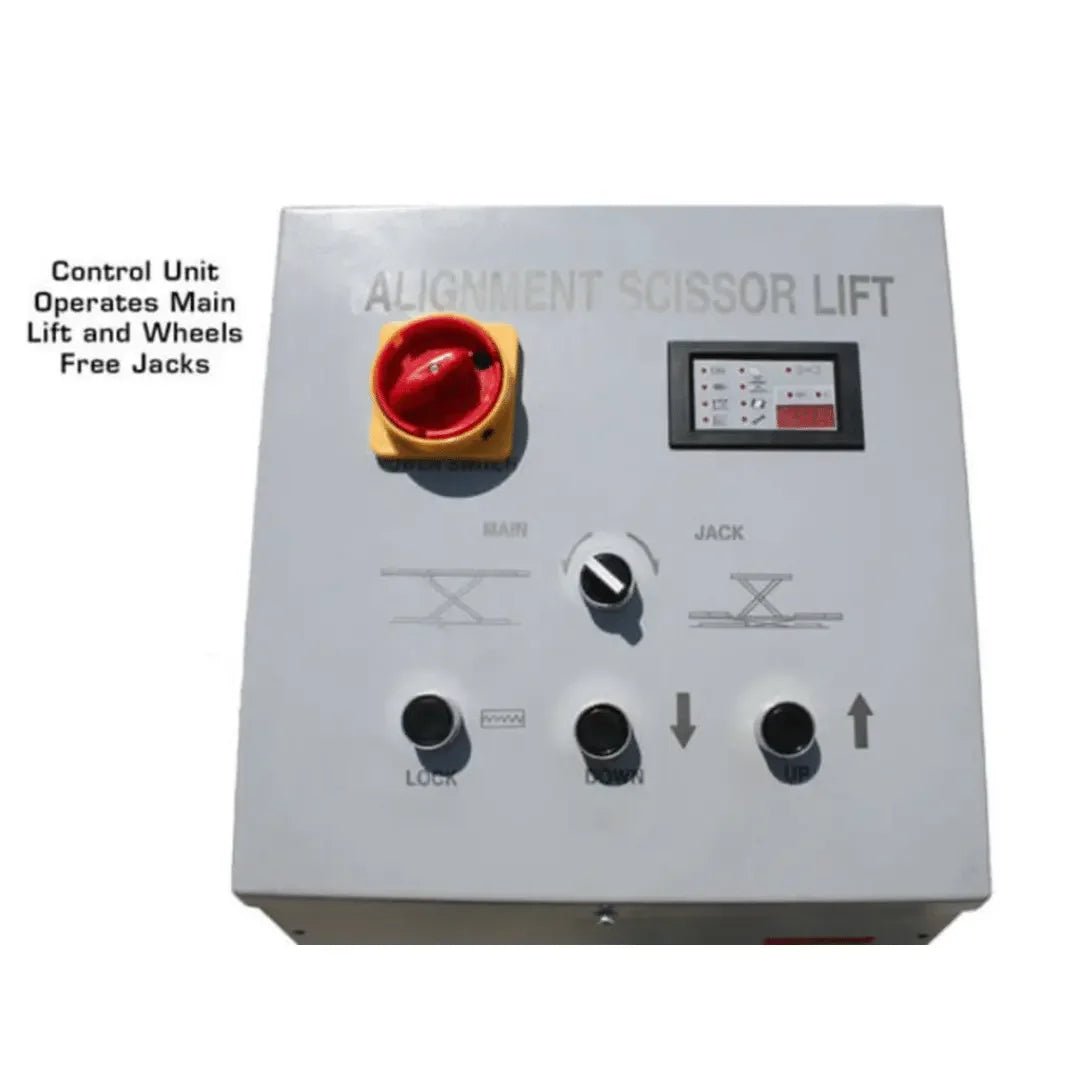

- Separate Self-Contained Control Panel

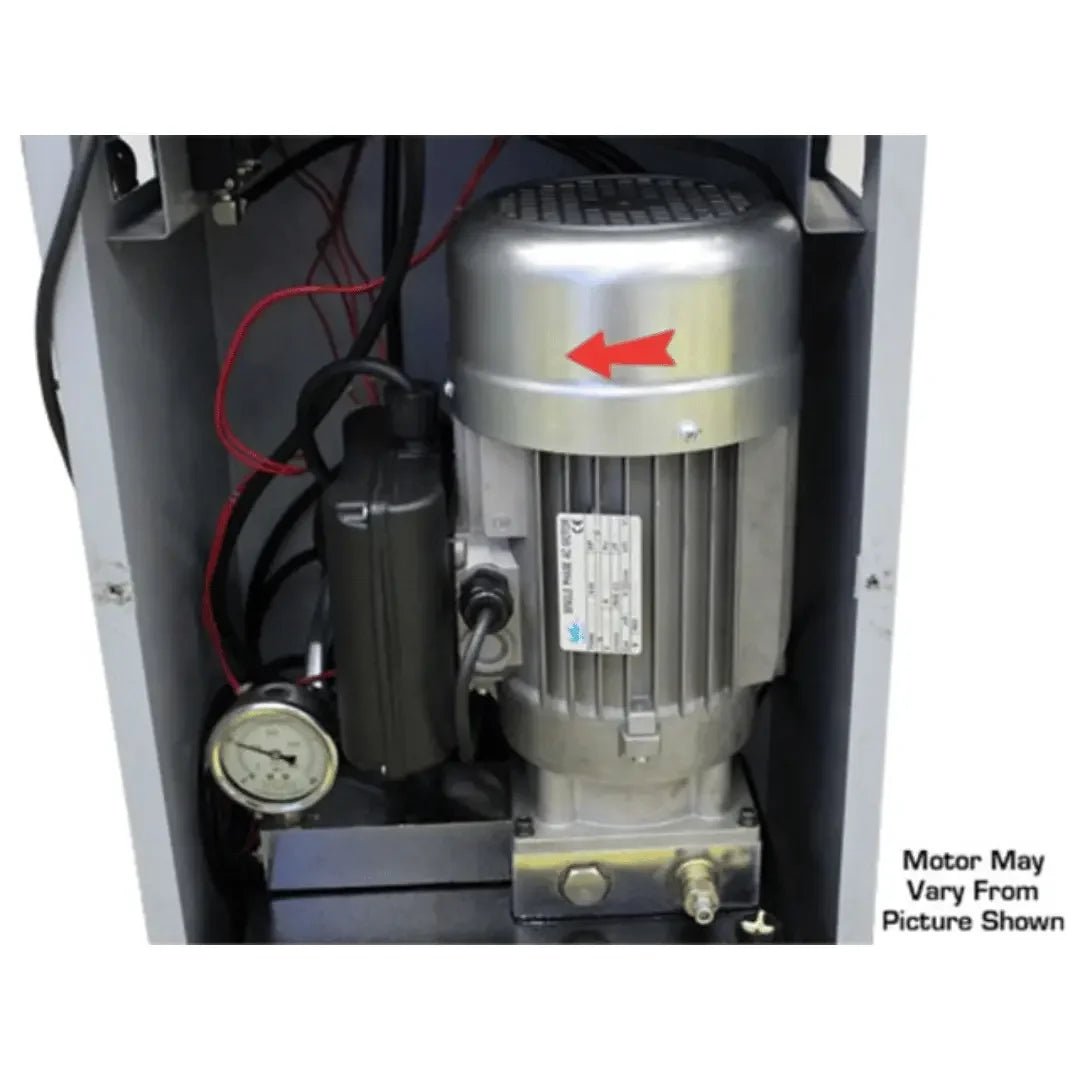

- Emergency Manual Pump for Lowering
- 19 Locking Positions
- CE Certified
- Can be Surface or Flush Mounted
- Mounting Hardware Included
- 220V/1ph Electric Operation (30amp Breaker)
- Shipping Weight: 5,000 lb.
- 2 yr Structural / 1 yr Hydraulic Warranty – Parts Only
Product Specifications
| Model | 12AWFSL |
| Lifting Capacity | 12,000 lbs. |

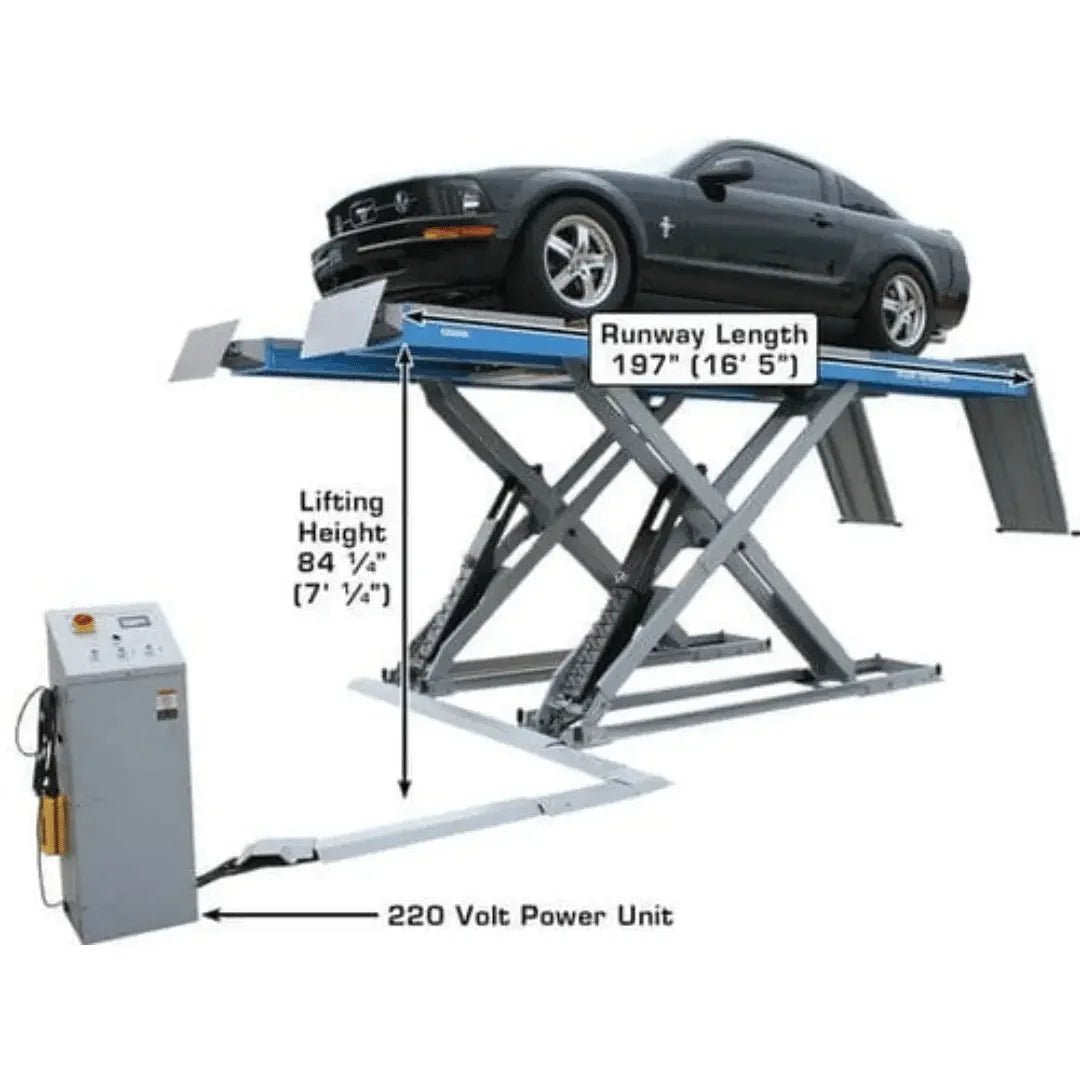

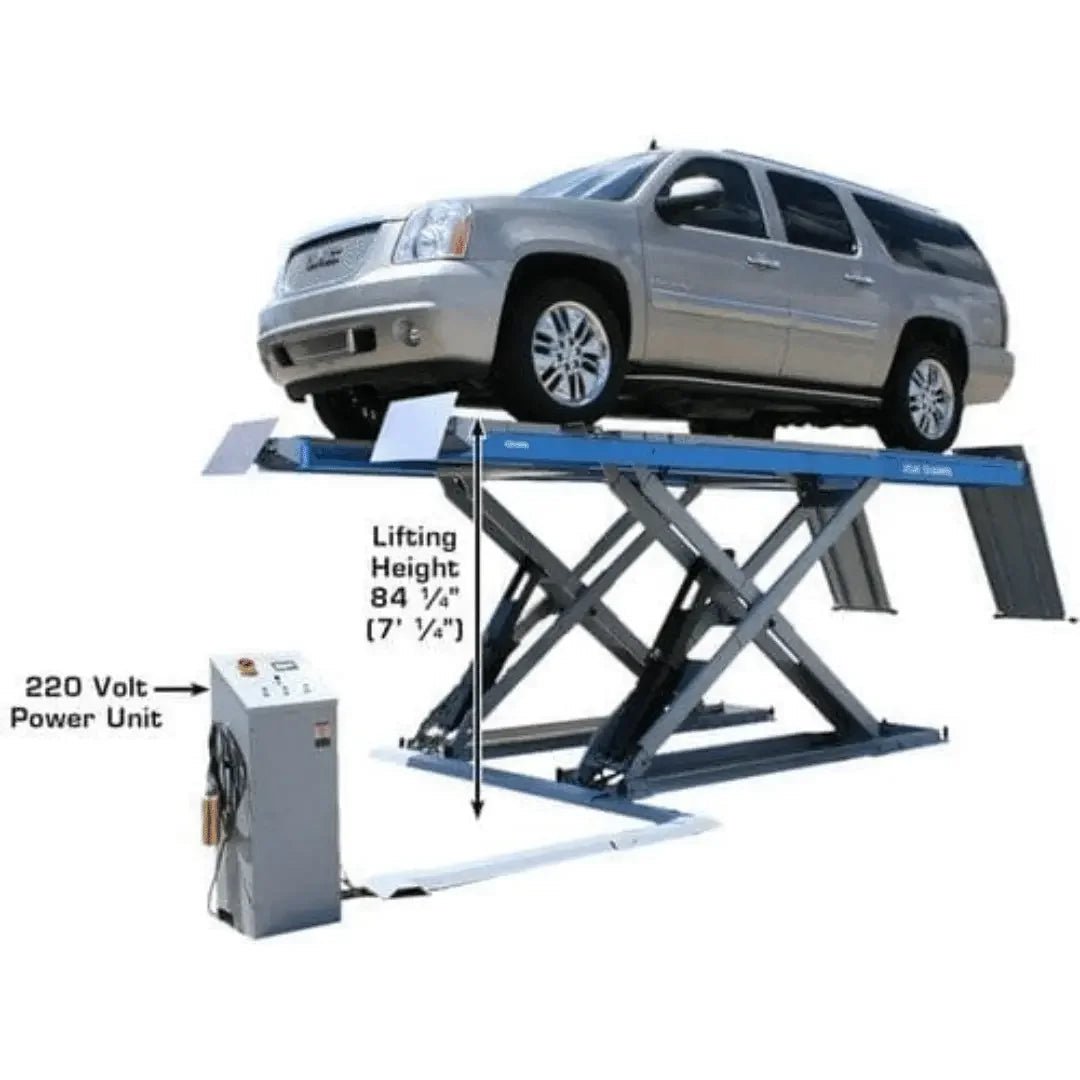

| Lifting Height | 84 1/4″ |

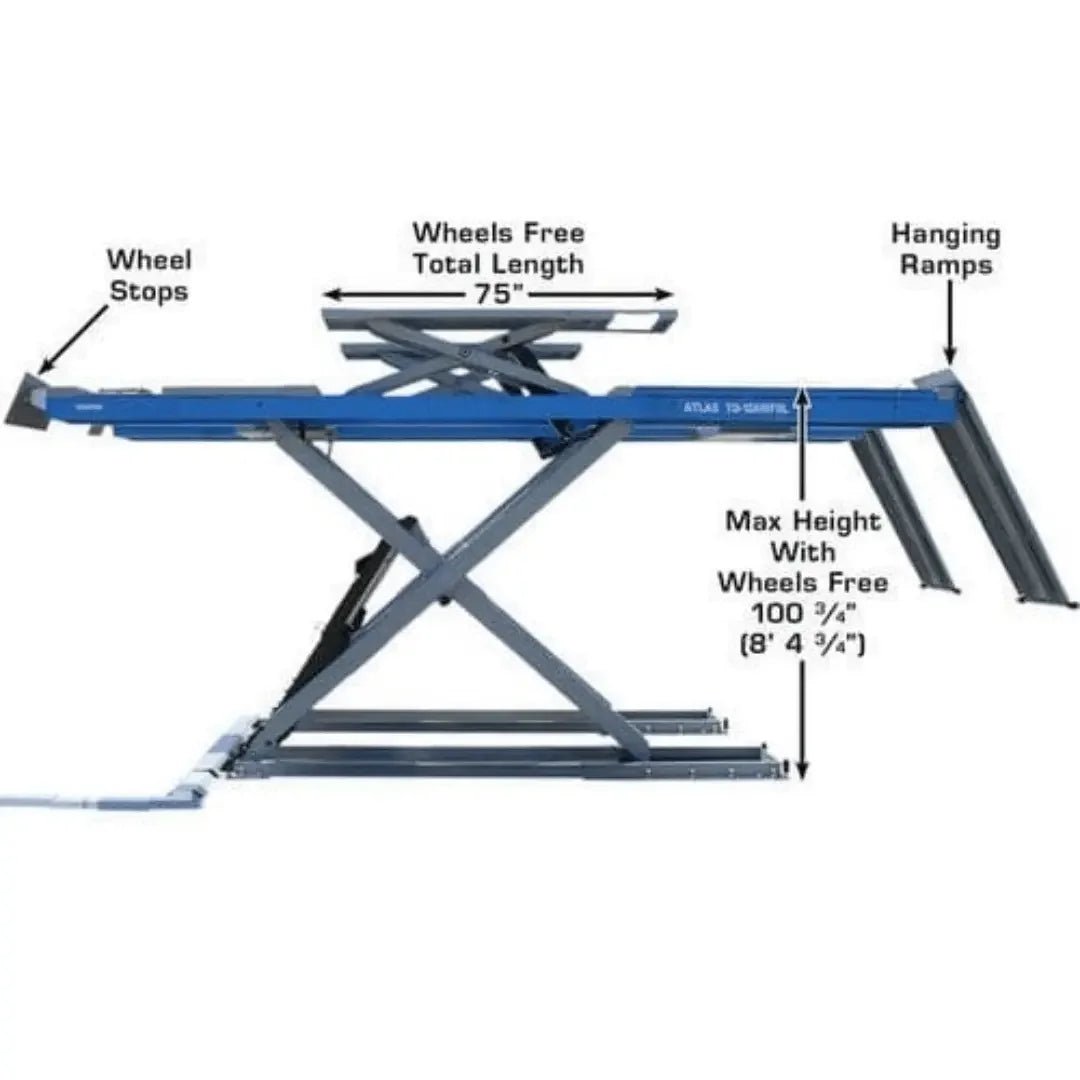

| “Wheels Free” Lift Height | 17″ |
| Lowered Height | 11 1/2″ |
| Overall Width | 86 3/8″ |

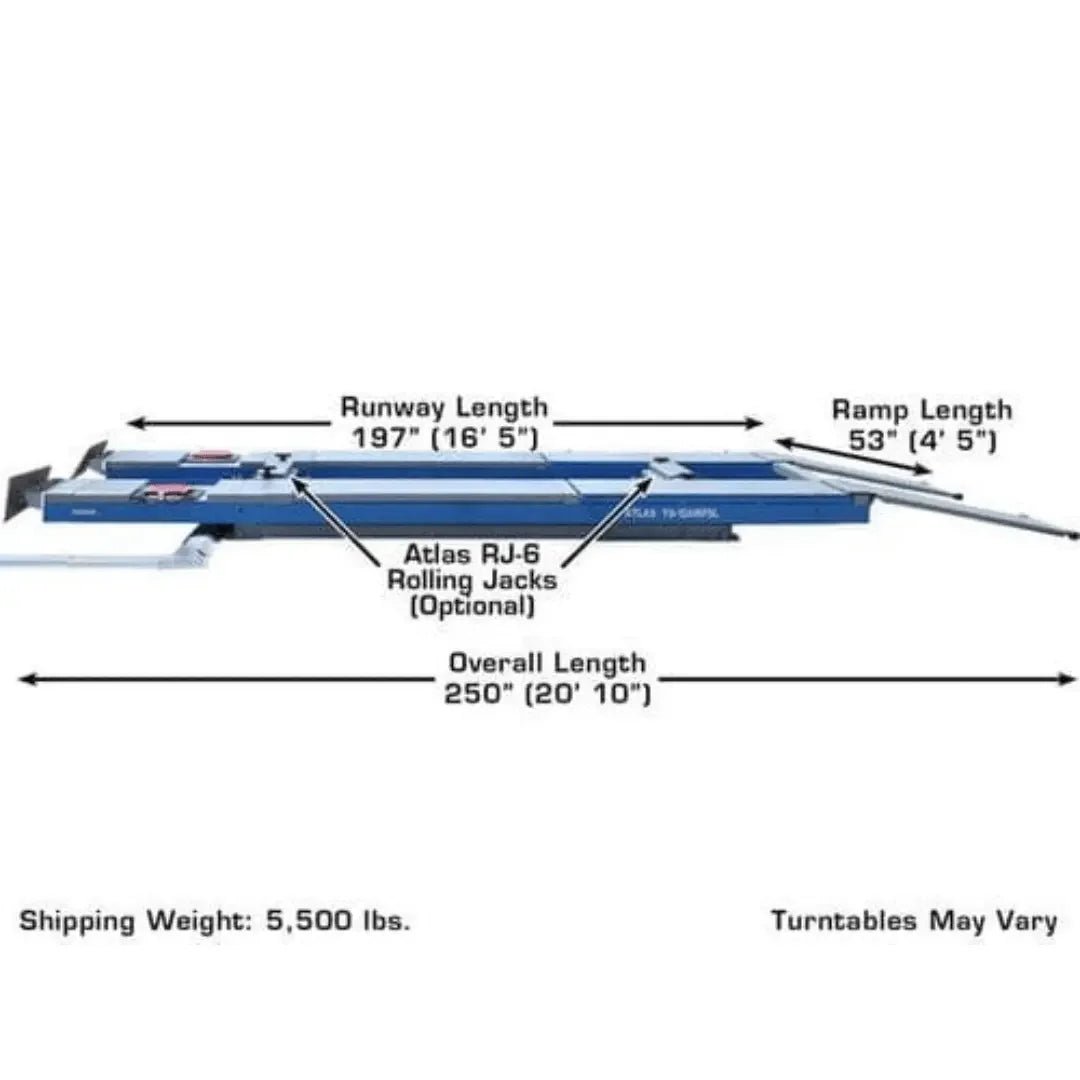

| Length w/ Ramps | 250″ |
| Length w/o Ramps | 197″ |
| Ramp Length | 72″ |
| 4-Wheel Alignment WB | 90″–168″ |
| 2-Wheel Alignment WB | 86″–172″ |
| Runway Width w/ Rail | 23 3/4″ |
| Width Between Runways | 39 1/4″ |
| Width Between Rails | 34 3/8″ |
| Air Requirement | 90-120 PSI |
| Electrical Requirement | 220V ±5%, 1ph, 30A |
| Oil Requirement | 3-5 Gal AW32/AW46 |
| Concrete Requirement | 6″ @ 3000 PSI |
| Shipping Weight | 5,000 lbs. |
