Atlas OHX10000X Commercial Grade Extra Tall 10,000 lb. Capacity 2-Post Lift (Will Call)
The Atlas® OHX10000X two post commercial grade above ground lift is the perfect choice for those large commercial repair facilities or the “Mr. Homeowner” who demands the highest quality at the absolute best price. The Atlas® OHX10X is a TRUE 10,000 lb. capacity two post lift that offers a great value to the customer. The Atlas® OHX10000X was engineered and manufactured to lift vehicles ranging from Smart Cars® to a one ton diesel dually. Extra lifting height and extra width between the columns allows the operator to work on all sizes of vehicles and offers a “fudge factor” of about 6 inches when “driving through” to another part of the building or lifting the van or “ladder truck”. If you are over 6? 2?, the Atlas® OHX10X has longer cylinders which allow the vehicle to be “lifted” about 3 inches higher than many other lifts.
The Atlas® OHX10X incorporates a single piece 12′ 7″ formed column and an extra long carriage that provides maximum column and arm strength to lift and support a 10,000 lb. vehicle. The single piece columns require the customer to have a ceiling of at least 13 feet to stand the column.
Product Features
- 10,000 lb. Capacity
- Commercial Grade
- Extra Tall & Extra Wide
- Overall height: 152? (12? 8?)
- Symmetric arms
- Automatic Arm Restraints
- “Padded” Shut-Off Bar
- Rubber Covers on Carriages
- Single Point Lock Release
- Dual Direct-Drive Cylinders
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,665 lbs
- 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
- This part number WILL CALL ONLY
Product Specifications

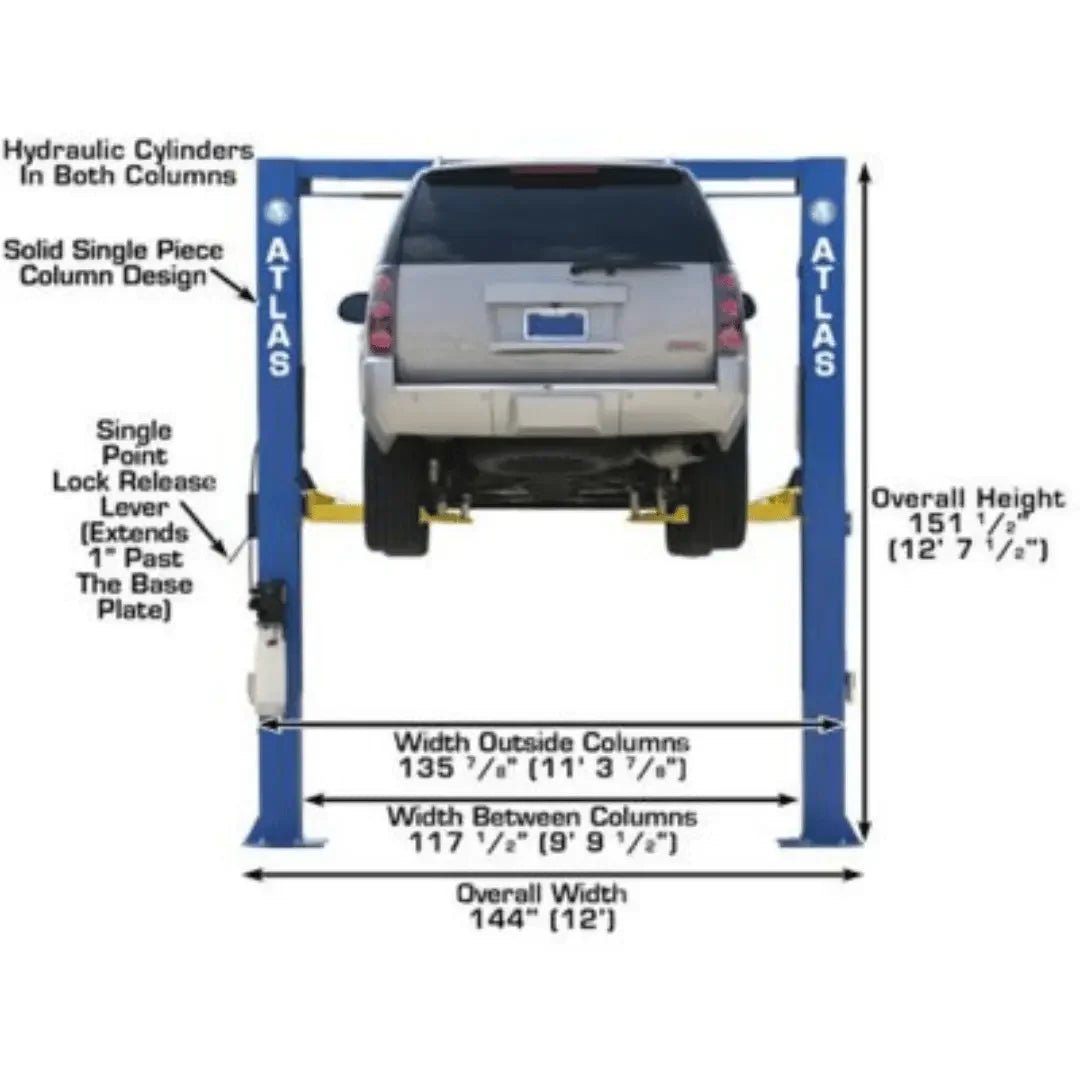

| Model | ATTD-OHX10000X |
| Capacity | 10,000 lbs. |
| Overall Height | 152″ (12′ 8”) |
| Overall Floor Width | 144 3/8″ (12′ 3/8″) |
| Outside Column to Outside Column | 136″ (11′ 4″) |

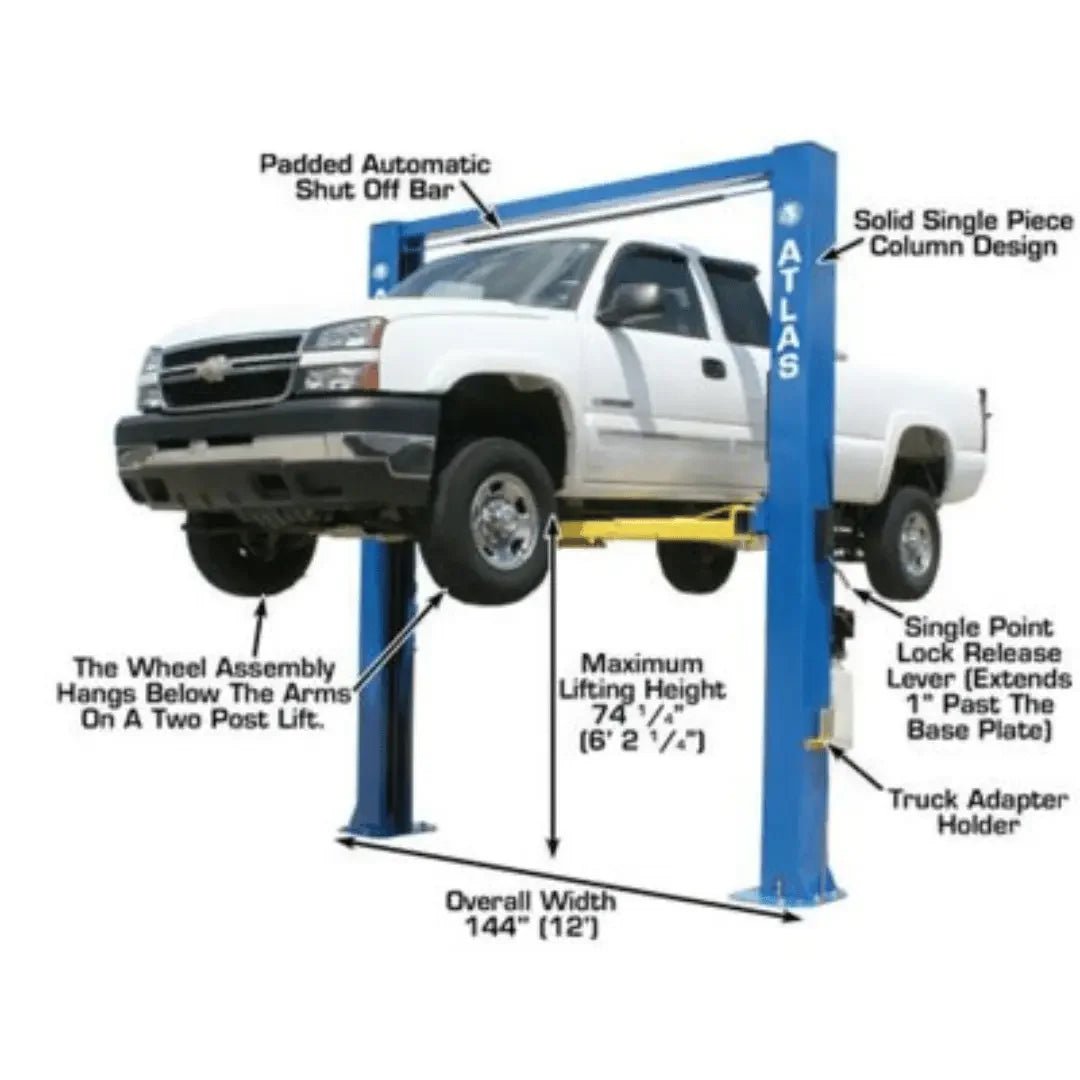

| Max Lift Height (Without Adapters) | 74 3/4″ |
| Max Lift Height (With Adapters) | 85 3/4″ |
| Minimum Arm Height | 4 1/2″ |
| Inside Column | 118 1/4” (9′ 10 1/4”) |
| Drive Thru | 106 7/8” (8′ 10 7/8”) |
| Column Size | 9 1/8″ x 11″ |
| Column Steel Thickness | 5mm |
| Base Of Lift | 18 1/2″ x 21 1/2″ |
| Motor/Electrical | 220V single phase (30A breaker recommended) |
| Oil Requirement | 3-5 Gal. AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 1,665 Lbs |
| Adapter Heights | 4 Each 2”, 3”, 6” |
| Arm Hole/Adapter Peg Size | 1.5” |
| Concrete Requirement | Min. 4″ @ 3000 psi |
