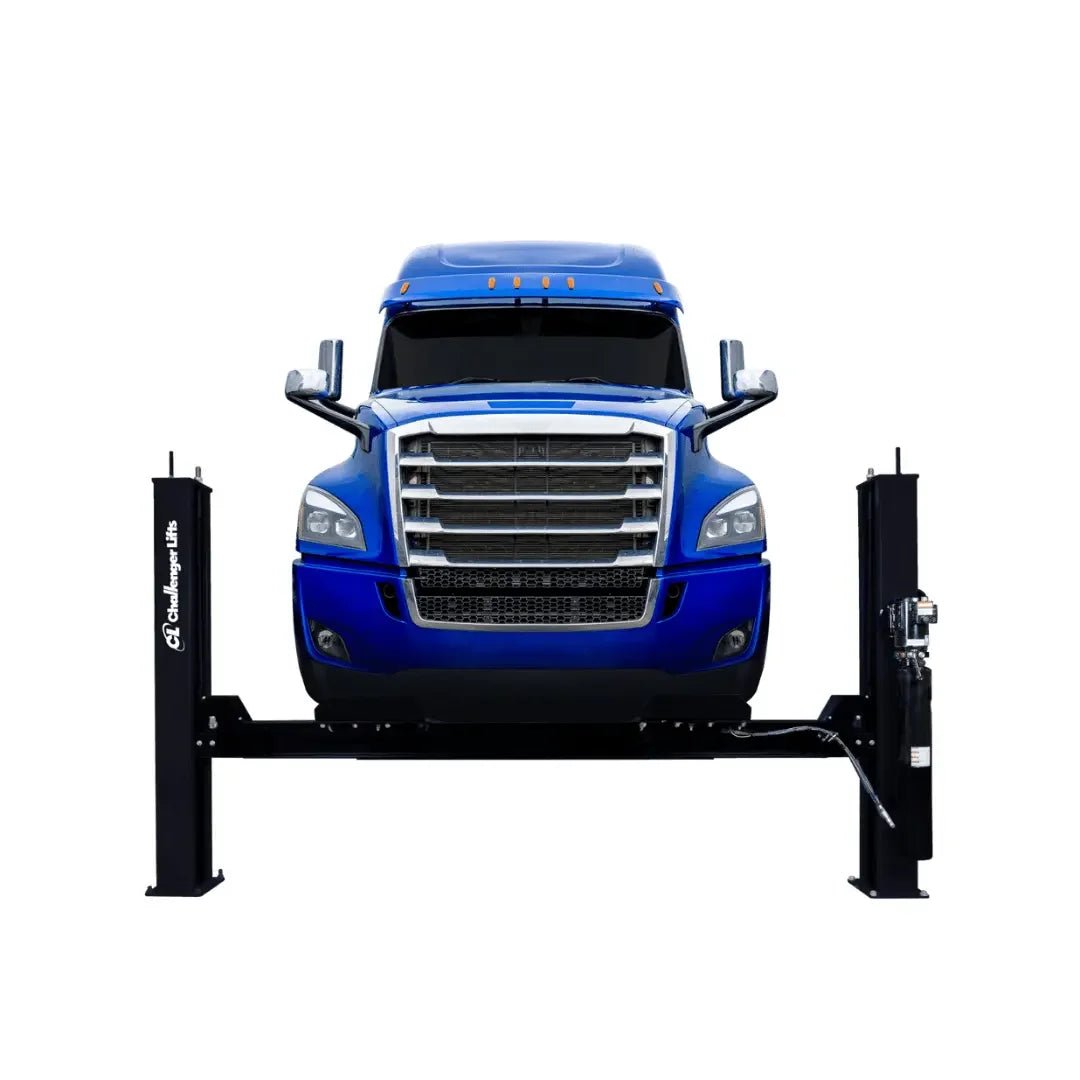

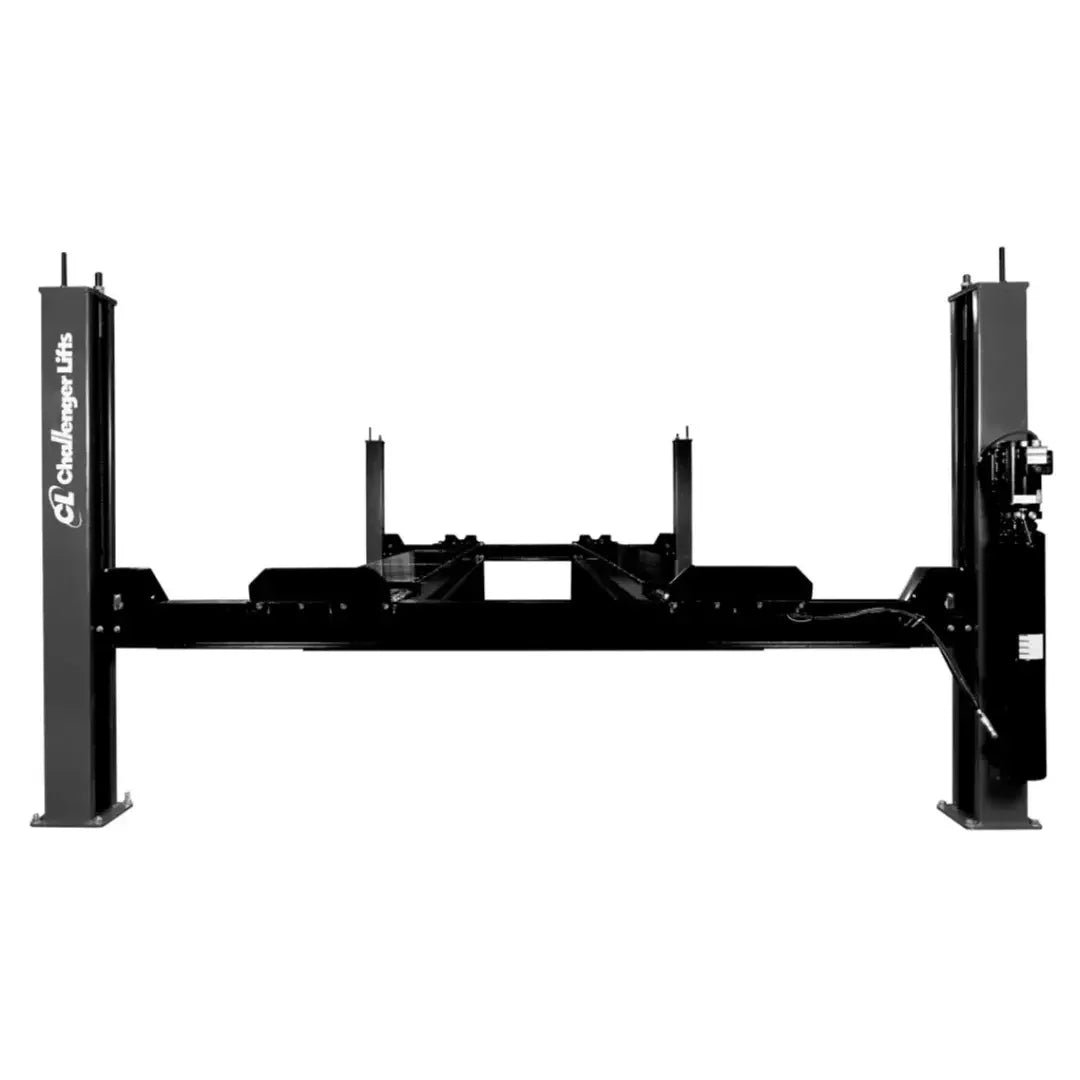

Challenger Lifts 4030XFX 30000 lbs Heavy-Duty 4 Post Alignment Lift
Our 30,000 lb. capacity 4-post 4030 series lift strongly emphasizes safety and durability. Integrating our time-proven cable-driven lift system, featuring heavy-duty steel sheaves and cables ensures optimal performance and long-term reliability. Including a single-point air-actuated lock release makes operating these lifts simple and hassle-free. With the option to choose between general service or alignment deck models and three different lengths, you can configure the 4030 to suit your shop’s specific needs perfectly. Additionally, a range of optional accessories is available to customize further and enhance these lifts’ functionality. Rest assured, these lifts are ALI/ETL certified, underscoring their compliance with rigorous safety and quality standards.
Product Features
- 30,000 lb. lift capacity
- Closed front design with 244.5″, 281″, or 317” max wheelbase
- 71.75” rise height provides maximum head room for working underneath vehicles
- Multiple locking positions for a variety of alignment and general service tasks
- Compatible with the industry’s latest camera imaging alignment systems
- Adjustable lock ladders allow for a versatile install with sensitivity to uneven floors
- Recessed turn plate pockets for easy drive-on (Alignment models only)
- Single-point air actuated lock release disengages column locks simultaneously
- Durable diamond-plate approach ramps for positive vehicle traction
- Built-in runway rail system provides versatility to add convenience options
like rolling jacks and oil drain pan (sold separately)
Product Specifications
| Model | 4030XFX |
|---|---|
| Lifting Capacity | 30,000 lbs. |
| Max. Wheelbase 1 | 317” |
| Rise Height | 71.75” |
| Overall Length | 380” |
| Overall Width | 172.75” |
| Inside Columns | 152” |
| Between Columns | 318.625” |
| Height of Columns | 92.25” |
| Height of Runways | 8.5” |
| Width of Runways | 24” |
| Width Between Runways | 46” – 52” |
| Air Supply Required | 90 – 120 psi |
| Motor / Voltage | 3HP, 208 – 230v Single Phase* |
| Speed of Rise | TBD |
| Max 2 Wheel Alignment | – |
| Min Recomm. Bay Size | 34’ x 17’ |
| ALI/ETL Certified | Yes |
| Color Available | Black |
