Description

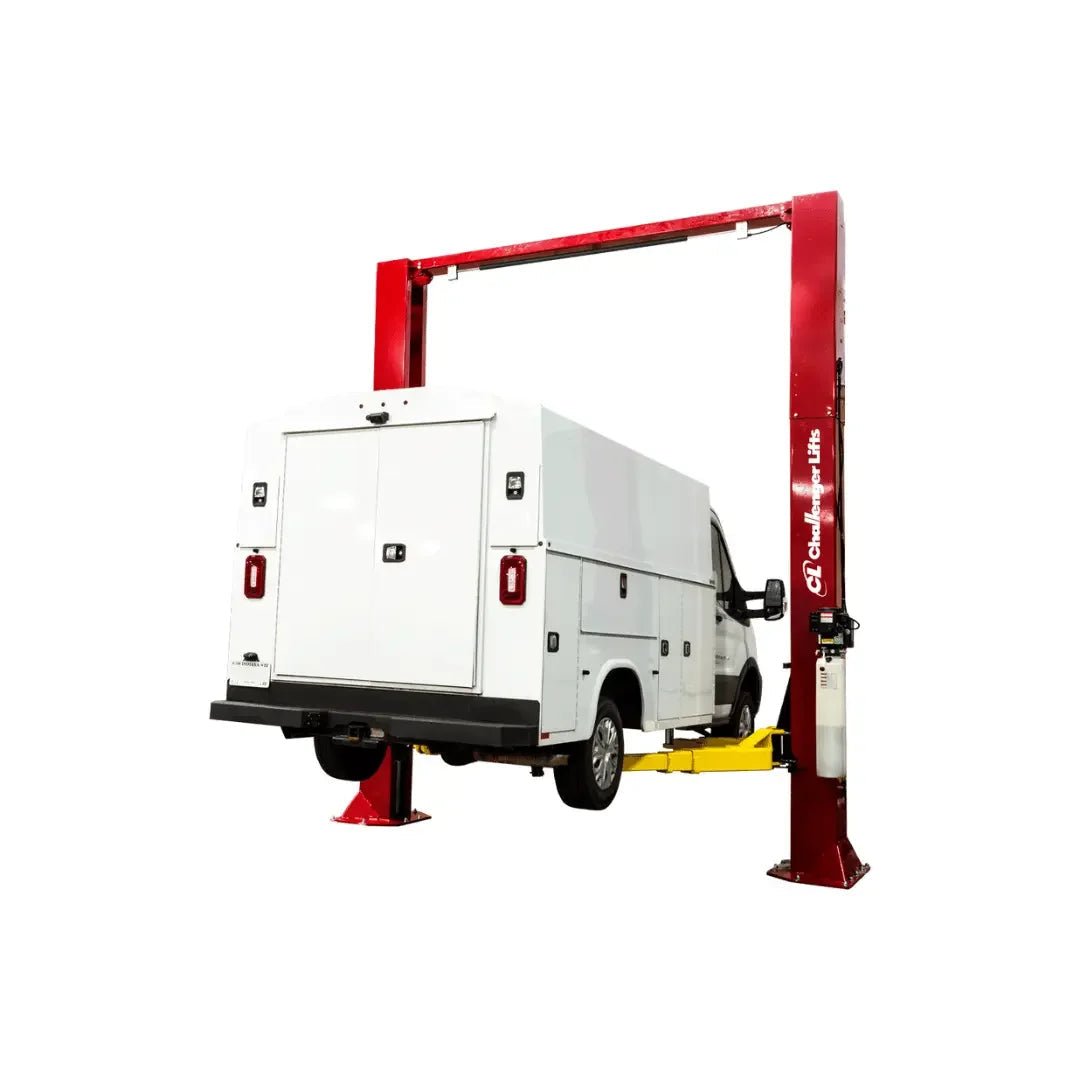

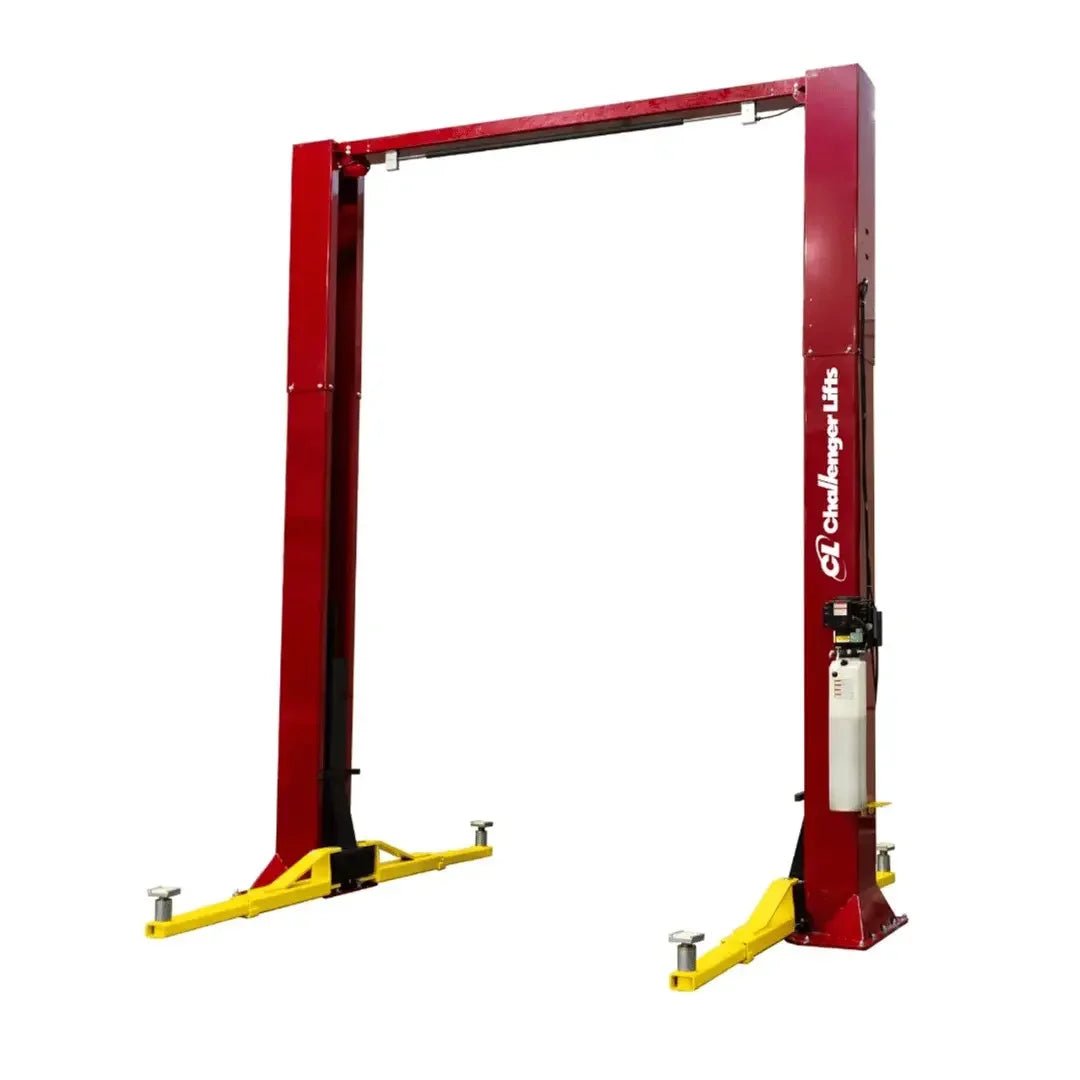

Challenger Lifts CL16-0-3S 16000 Lbs 2 Post Heavy-Duty Lift
Challenger’s 16K Heavy-Duty Two-Post lift offers unparalleled flexibility and safety, making it the ultimate partner for all your automotive needs. With a capacity of 16,000 lbs. and featuring 3-stage arms, this lift can handle a variety of vehicles, from select standard cars, trucks, and SUVs to most Electric and commercial-fleet vehicles. It also features low-profile pickup pads, along with multiple height and width options. You can install this lift to ensure your shop can efficiently service even the widest variety of vehicles.
By investing in Challenger’s Heavy-Duty Two-Post lifts, you’re not just buying equipment but investing in your business. These lifts are built to last and will withstand even the most demanding fleet maintenance needs, saving you time and money in the long run. So why settle for anything less than the best? Choose Challenger’s Heavy-Duty Two-Post lifts and experience the ultimate in performance and safety.

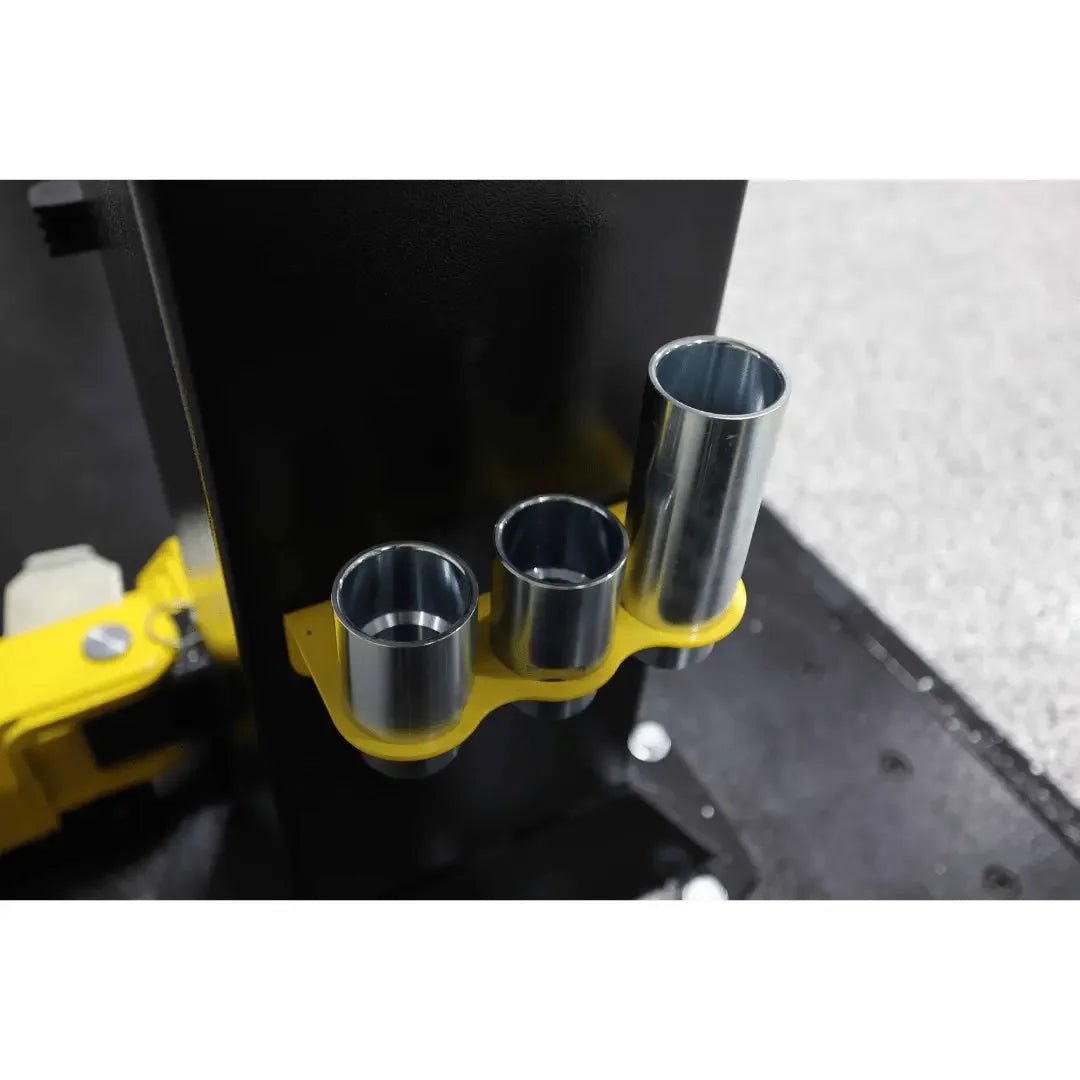

Every CL16 comes with our Stack Adapter Kit (P/N 10315), providing you with all the necessary tools to get started. Plus, this lift is ALI® Certified, guaranteeing it meets the highest industry standards for safety and quality.
Product Features
- Engineered to be wider, taller, and stronger. Ready to tackle the heaviest vehicles in any fleet.
- Single-point air actuated lock release allows the technician to disengage both columns simultaneously.
- Oversized 5” diameter steel pulley and heavy-duty 3/8” cable reduces stress on equalization system and increases cable life.
- 60” lifting carriage design increases lift life.
- Adjustable width and symmetrical design allow easy access to the vehicle’s interior.

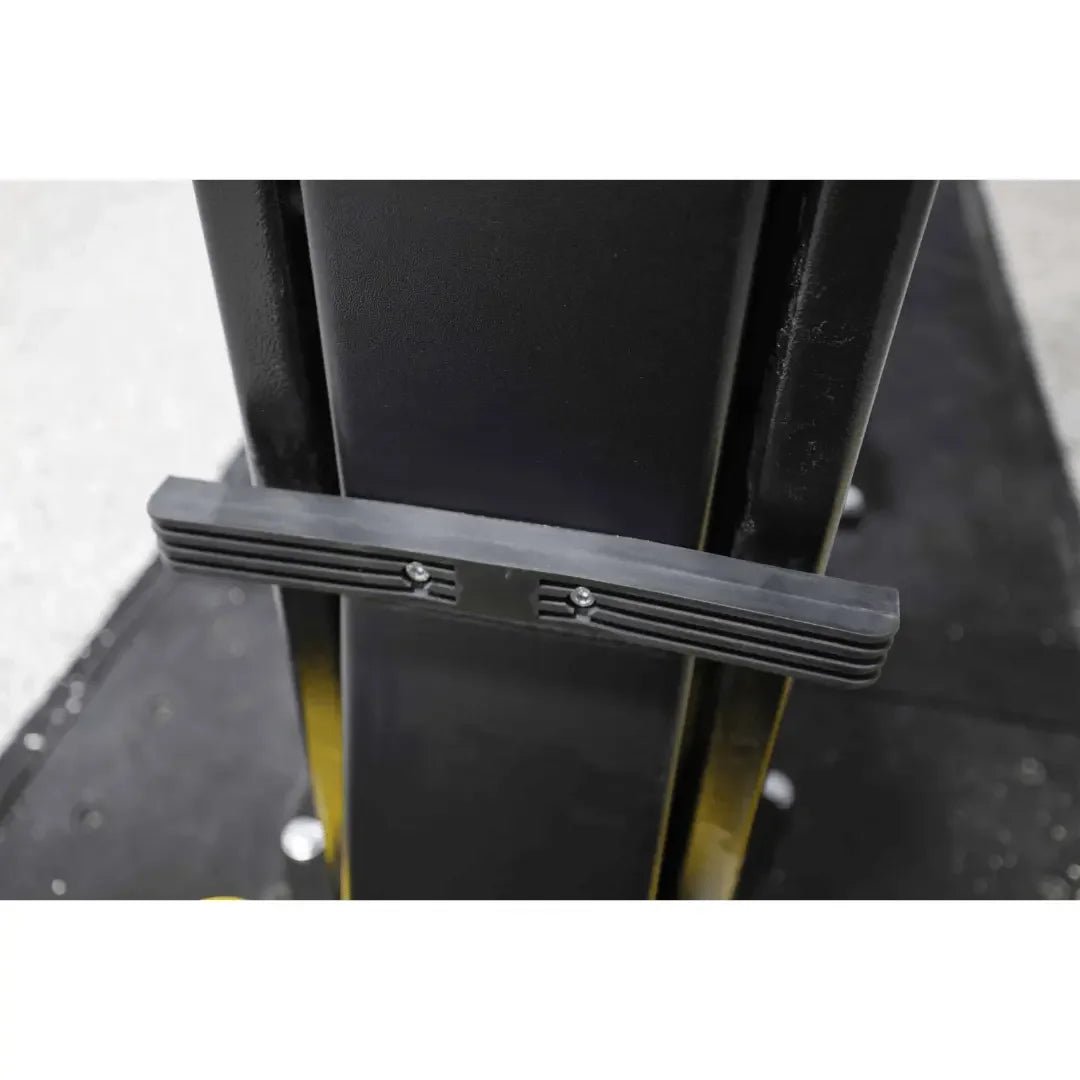

- Dual integrated rubber door guards to prevent door damage.
Product Specifications
| Model | CL16-0-3S |
|---|---|
| Description | 16K Extended Height |
| Lifting Capacity | 16,000 lbs. |
| Lift Configuration | Symmetric |
| Arm Configuration | 3-Stage Front/Rear |
| Maximum Load Per Arm | 4,000 lbs. |
| Rise Height (Maximum with Stack Adapters) | Min. 75.5″ Max. 81.5″ |
| Overall Height Options | 162″, 168″, 174″ |
| Overall Width Options | 166.75″, 160.75″, 154.75″ |
| Drive-Thru Clearance | 104.25″, 110.25″, 116.25″ |
| Floor to Overhead Switch | 155″, 161″, 167″ |
| Arm Reach | Min. 36.625″ Max. 75″ |
| Screw Pad Height | Min. 5″ Max. 6.5″ |
| Between Columns | 120″, 126″, 132″ |
| Motor/Voltage | 3HP, 1Ph, 60Hz, 208/230v |
| Air Supply Required | 90-120 psi |
| Rise Time | 62s |
| Min. Ceiling Height Required | 13’8″, 14’2″, 14’8″ |
