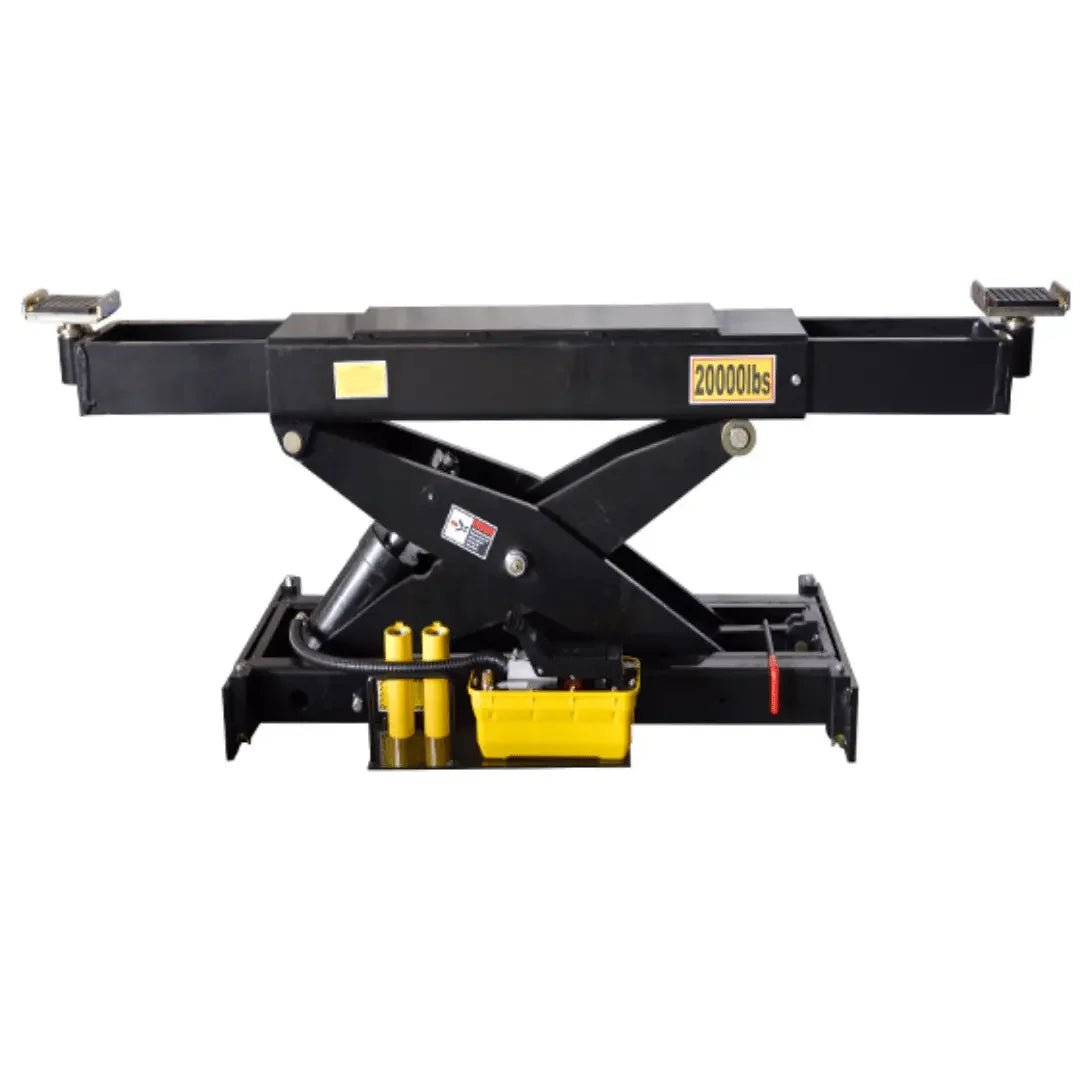

AMGO RJ-20A Rolling Jack
The AMGO RJ-20A, specially designed for extreme heavy-duty lifting needs, boasts a lifting capacity of 20,000lbs. It features a strengthened heavy-duty structure, with saddle adapter equipped as standard. The RJ-20A is incontrovertible one of the most powerful rolling jacks in the industry.

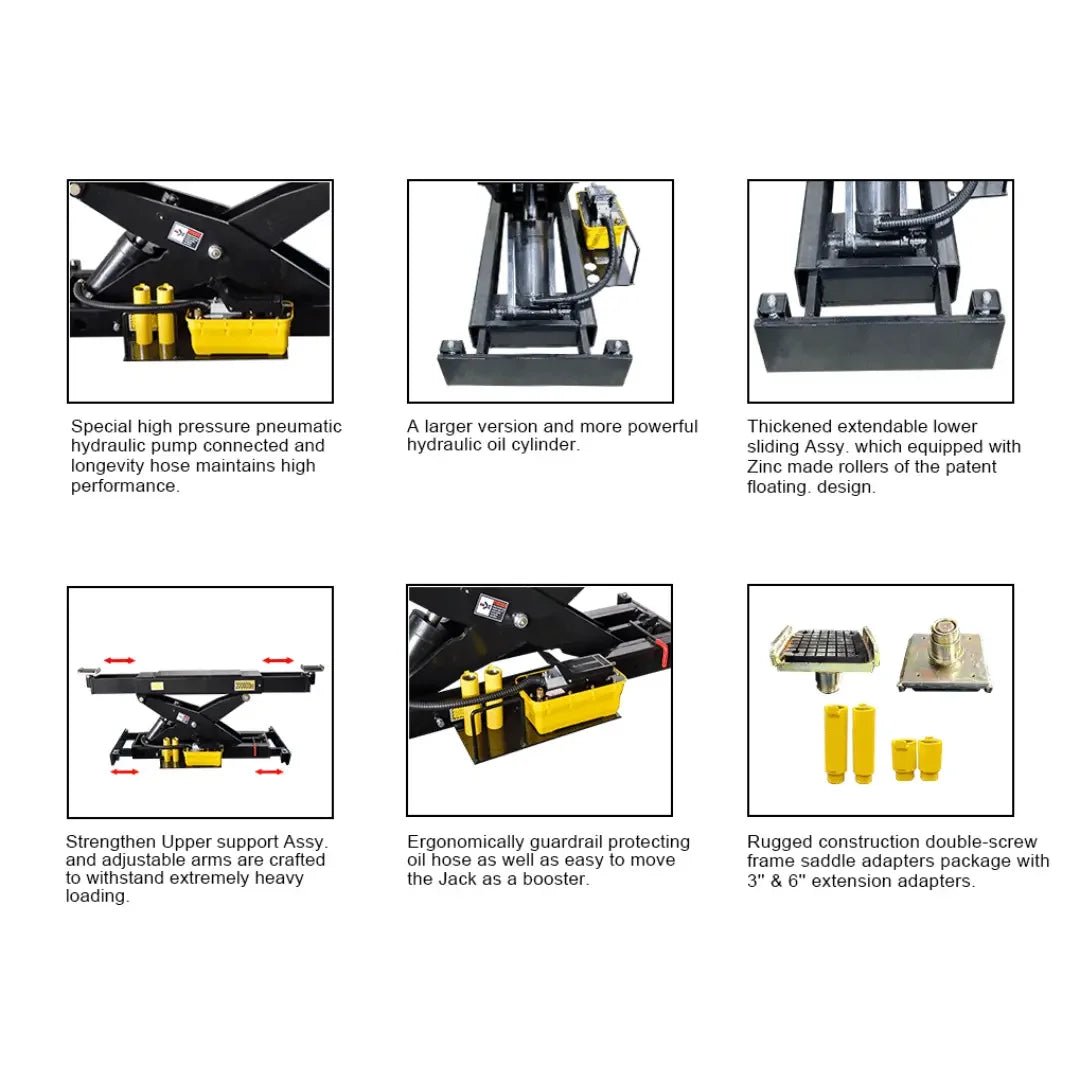

Product Features
- Powerful pneumatic hydraulic pump with excellent performance.
- Double-screwing Frame saddle Pad Assy. provides more suitable chassis engagement and ensures more secure support when lifting a extremely heavy-duty vehicle or full-sized truck.
- 3” & 6” Extension adapters that are included as standard accessories are used for increasing height.
- Used the patent floating design rollers are made of hardened stainless-steeland zinc plated to increase durability.
- Reinforced scissor structure helps to provide most stable lifting work.
- Extendable lower sliding Assy. are strengthen and thickened which holding the jack steadily between the runways.
- The strongest adjustable arms are good to handle heavy-duty work and positioning lift point easily.
- Equipped with larger size hydraulic oil cylinder.
- Ergonomically guradrail works as a booster handle for moving the Jack easily and protecting oil hose.
Product Specifications
| Model | RJ-20A |
| Lifting Capacity | 20,000 lbs |
| Lifting Time | 84 Seconds |
| A: Arm Pads Reach | 45 1/4″~72 5/8″ |
| B: Min. Height | 14 9/16″ |
| C: Support Base Width | 47 7/16″~63 3/16″ |
| D: Min. Rubber Pad Height | 16 3/4″ |
| E: Lifting Height (Without Adapters) | 30 11/16″-33 1/2″ |
| E: Lifting Height (With Adapters) | 39 3/4″-42 1/2″ |
| F: Overall Width | 25 1/2″ |
| Air Pressure | 0.8Mpa |
| Pump | Pneumatic Pump |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions.
