Atlas 7K-Kwik-Bay Portable Mid-Rise Scissor LIft 7,000 lb
The Atlas® 7K Kwik Bay Portable Mid-Rise Scissor Lift is a free standing 7,000 lb. capacity portable scissor lift, perfect for quick service bays and wheel service specialists. It raises vehicles without arm positioning—just drive over the ramps and use rubber blocks under lifting points. With over 39″ lifting height, it offers a stable platform at all lock positions.

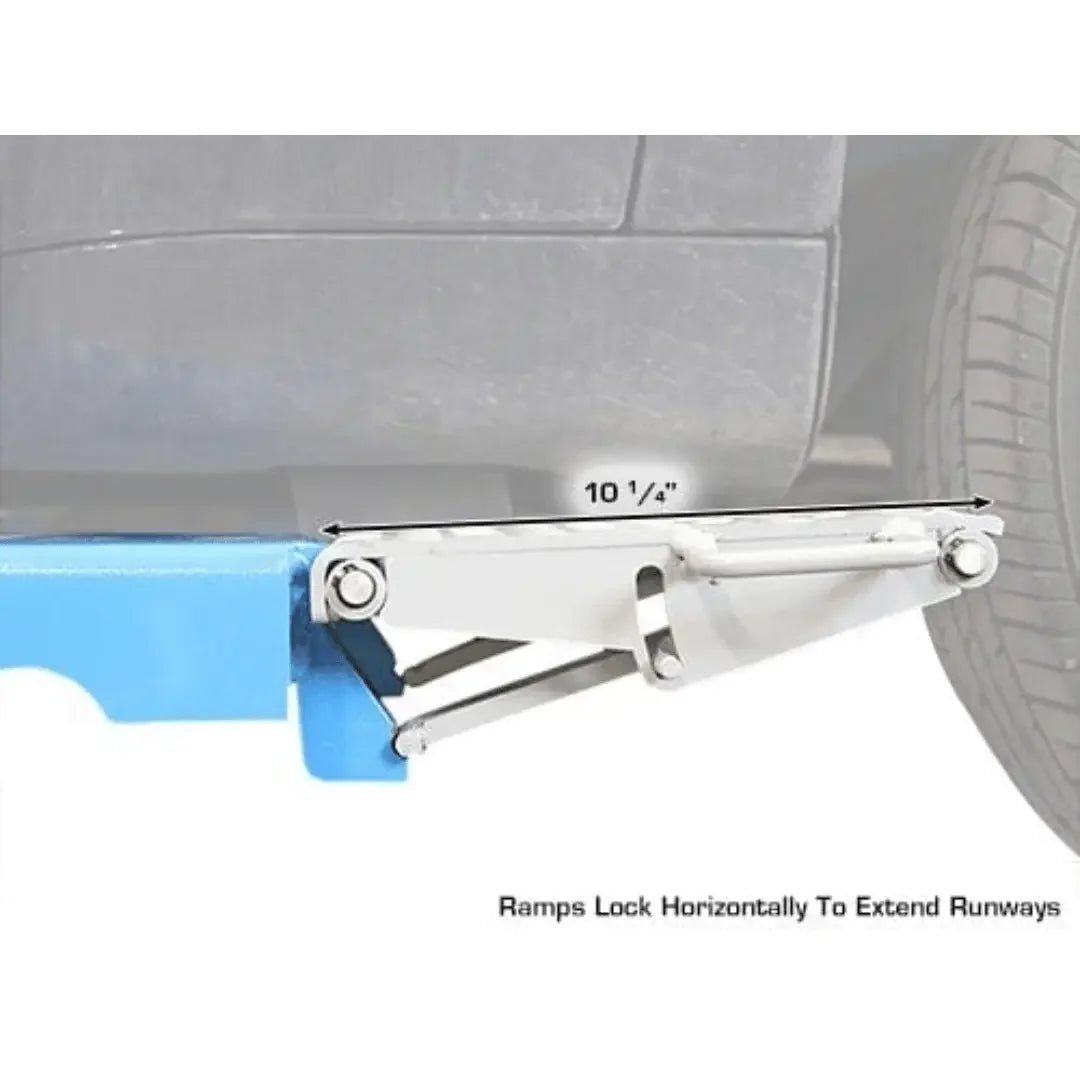

The open middle design allows underside access not possible with full superstructure lifts. Ramps lock into place to extend runway length from 57 1/2″ to 78″. Dual power cylinders and solid safety locks make it highly versatile and easy to use.

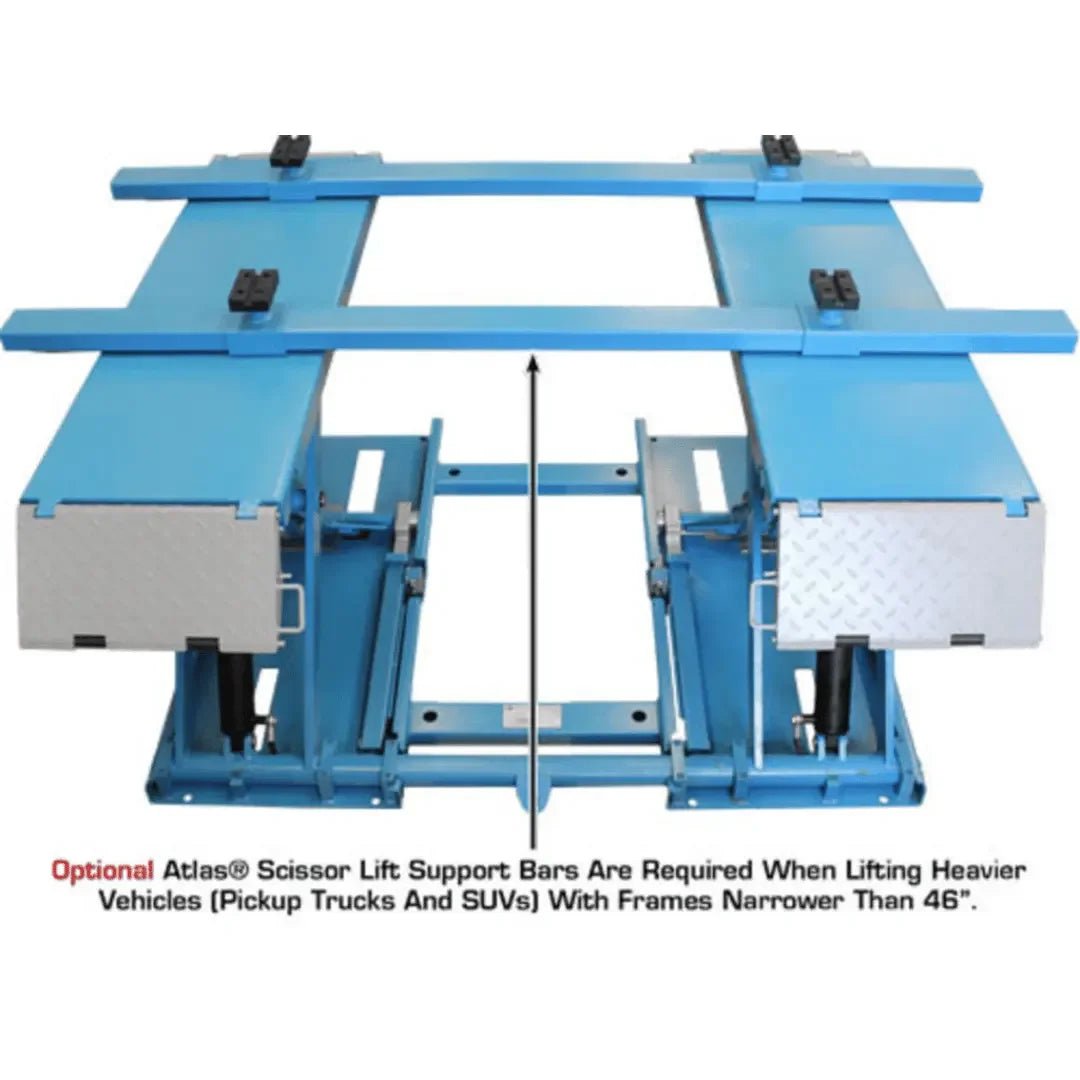

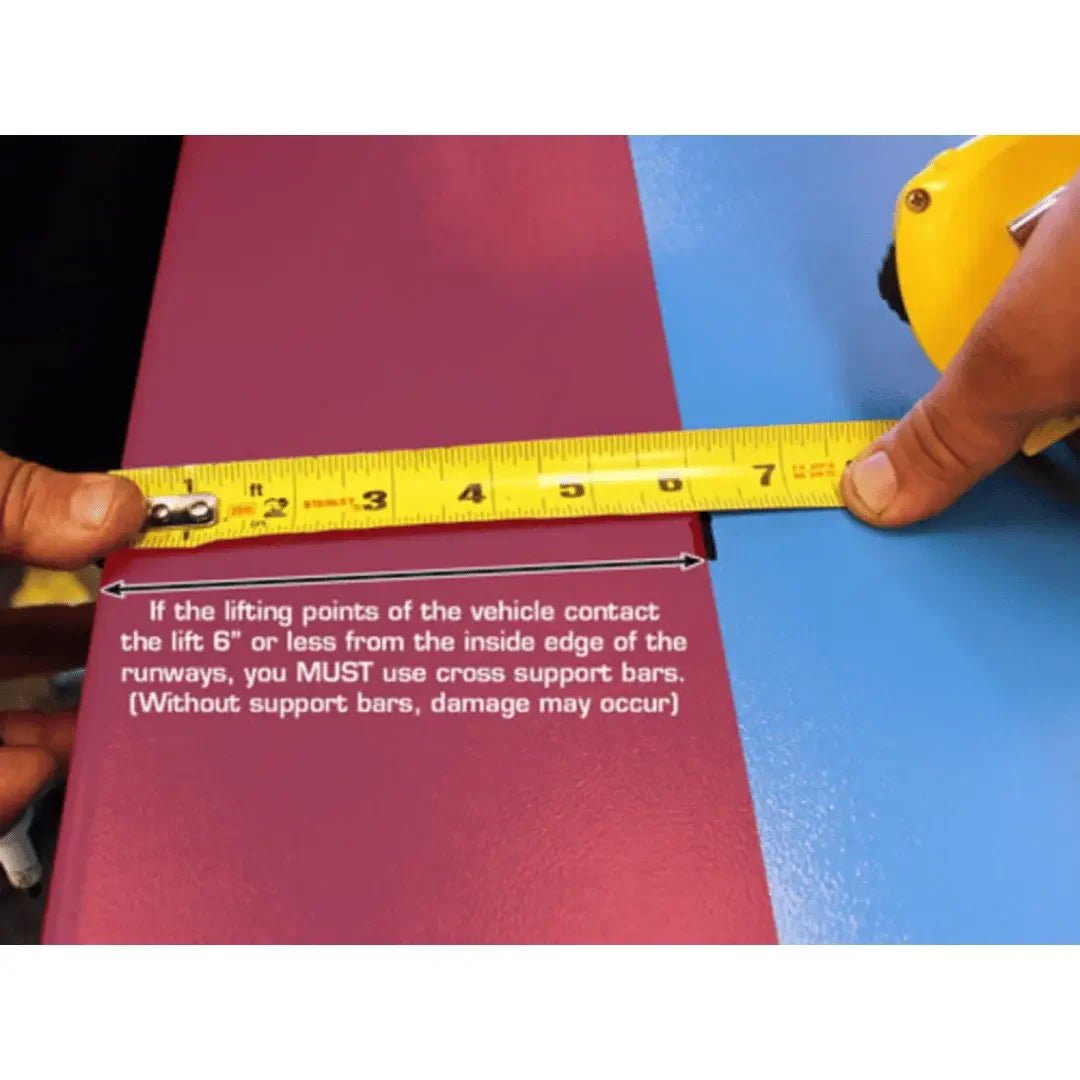

Operators should place vehicle frames at least 6″ from platform insides to avoid “pigeon toe” effect. We offer the Atlas® scissor lift support bar kit for narrow frame vehicles. Maintain 2–6″ space between lift and vehicle lifting points.
Product Features
- 7,000 lb. Capacity
- Free Standing, Portable
- Open Center Design
- Commercial Grade Quality
- Drive Over Ramps

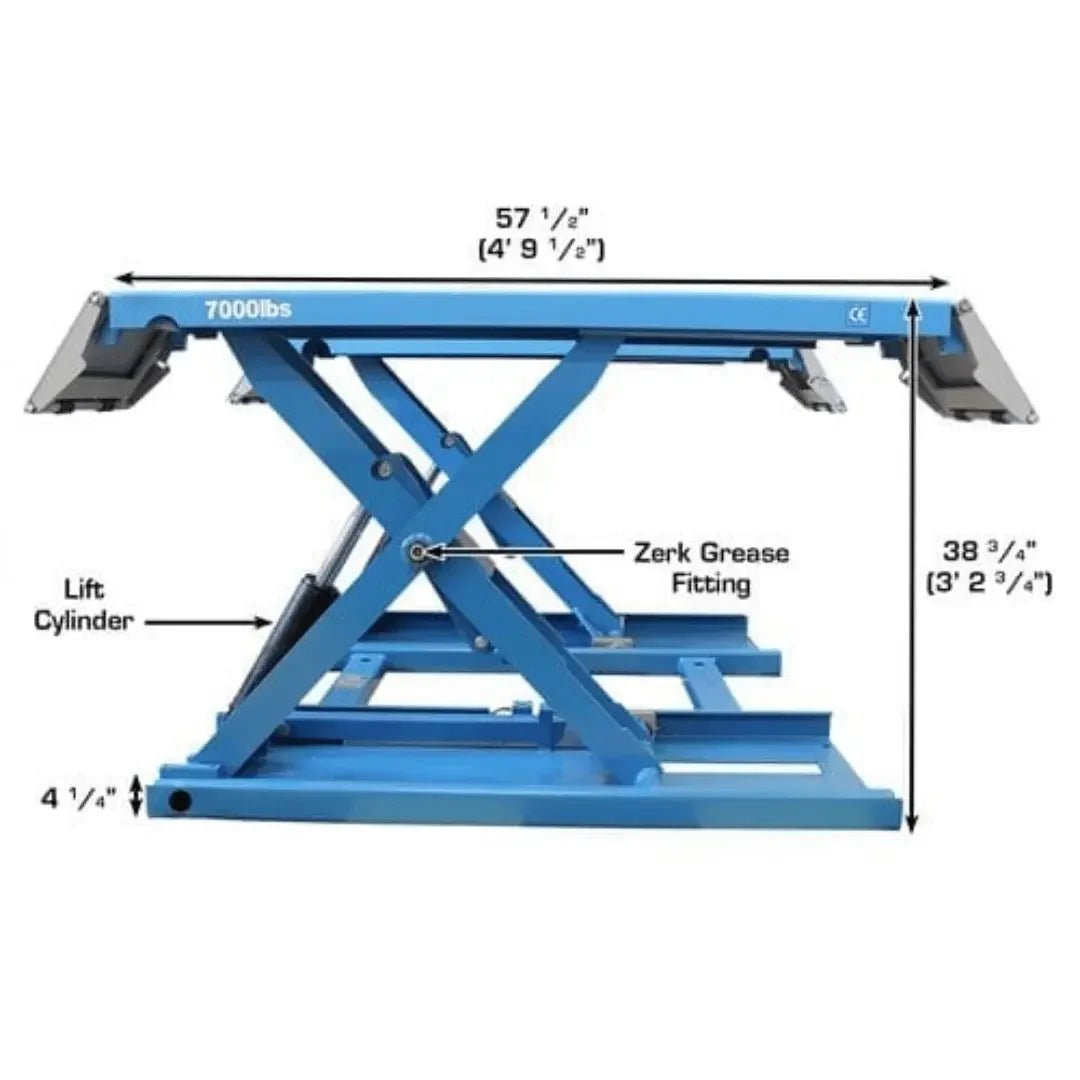

- Grease Zerk Fittings at Hinge Points
- Great for Tire and Brake Work

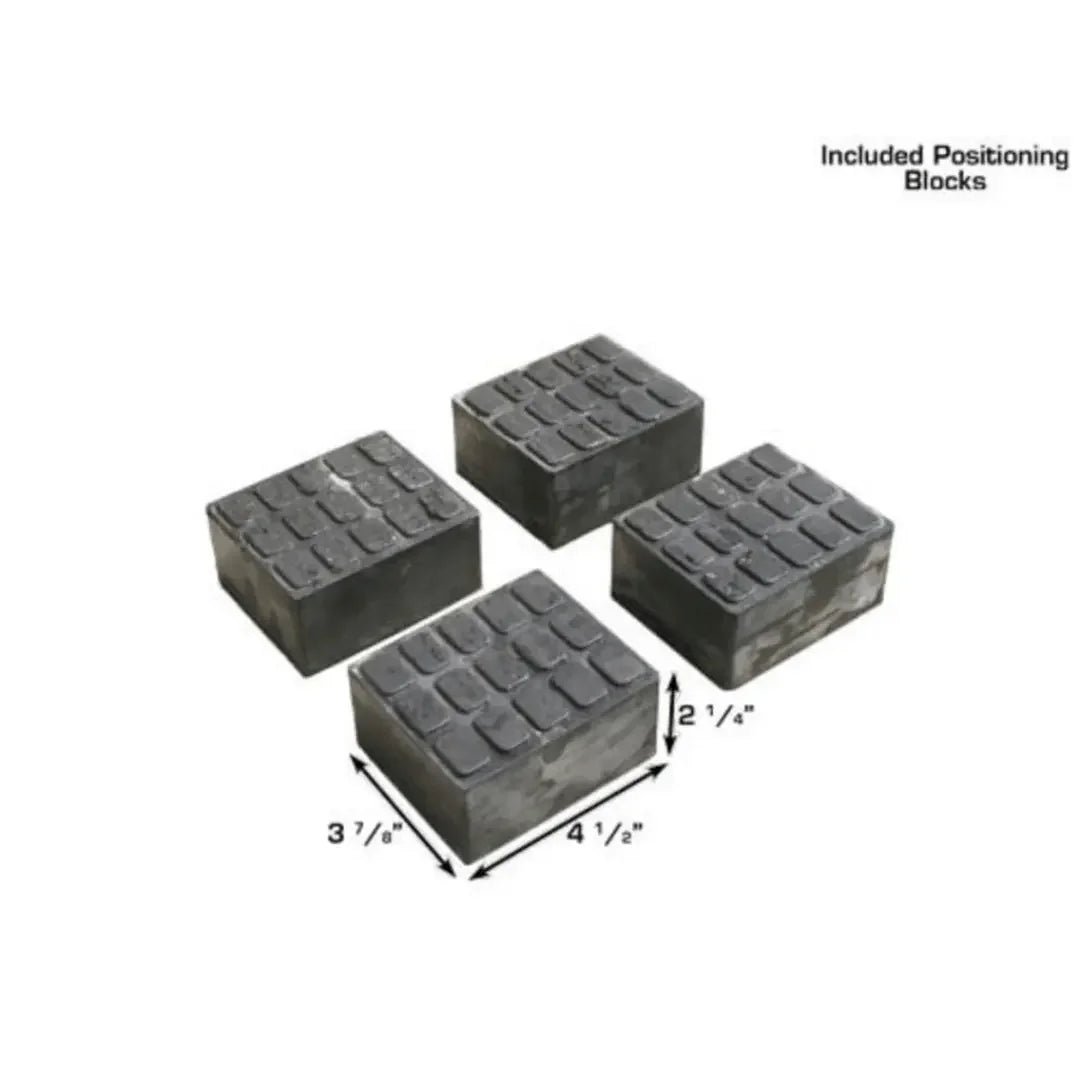

- Heavy Duty Rubber Lifting Blocks Included
- Air-Operated Single Point Lock Release (External Air Supply Required – NOT INCLUDED)
- 110volt Electric Operation
- Shipping Weight: 1,441 lbs.
- 2 Year Structural Warranty/2 Year Hydraulic Warranty
Product Specifications
| Model | 7K-Kwik-Bay |
| Load Capacity | 7,000 lbs. |
| Max Lifting Height | 41″ (With Rubber Blocks) |
| Min Lifting Height | 4 1/4″ |

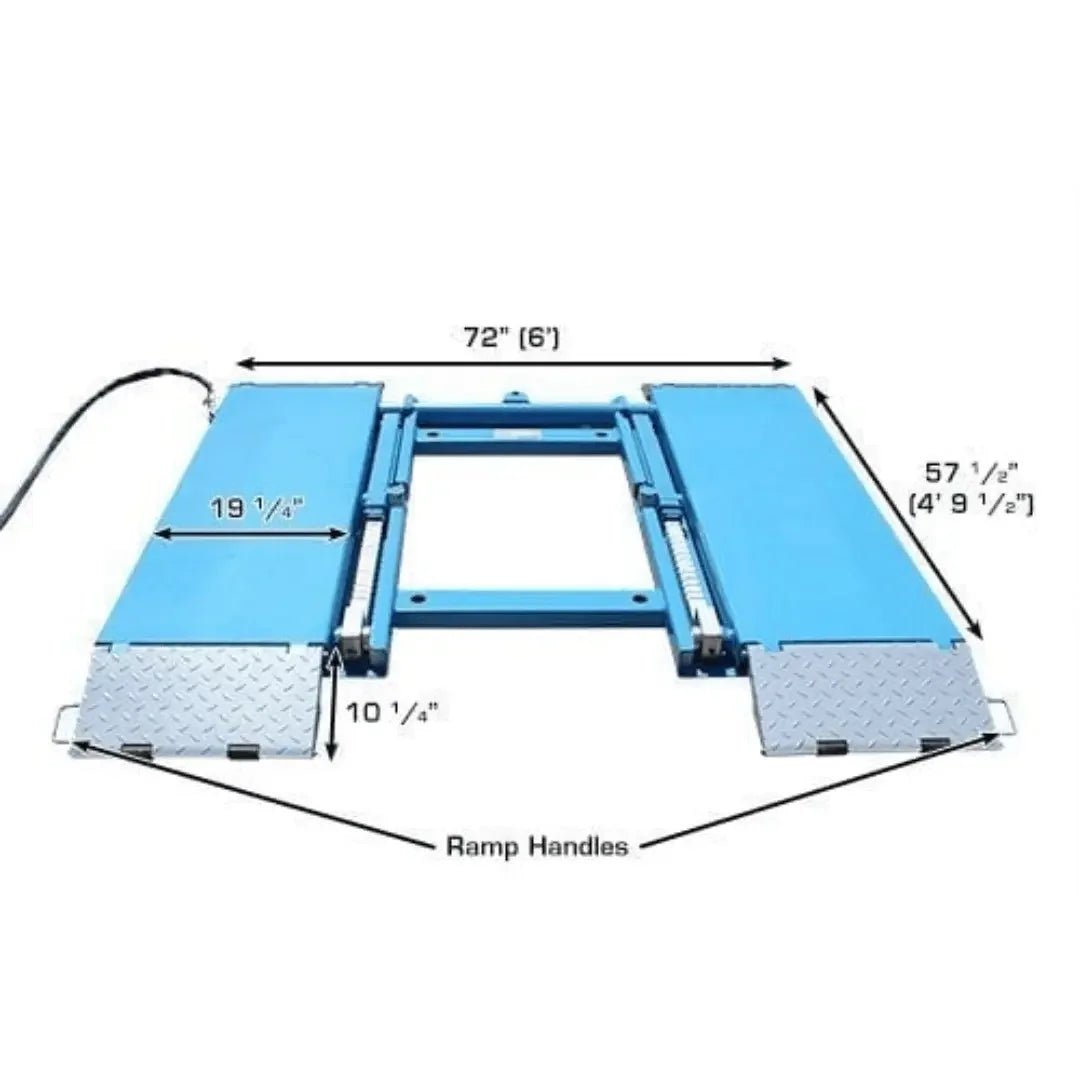

| Overall Dimensions | 85 1/2″ L x 72″ W |
| Platform Dimensions | 56″ L x 19 1/4″ W |
| Ramp | 14 1/2″ x 19 1/4″ |

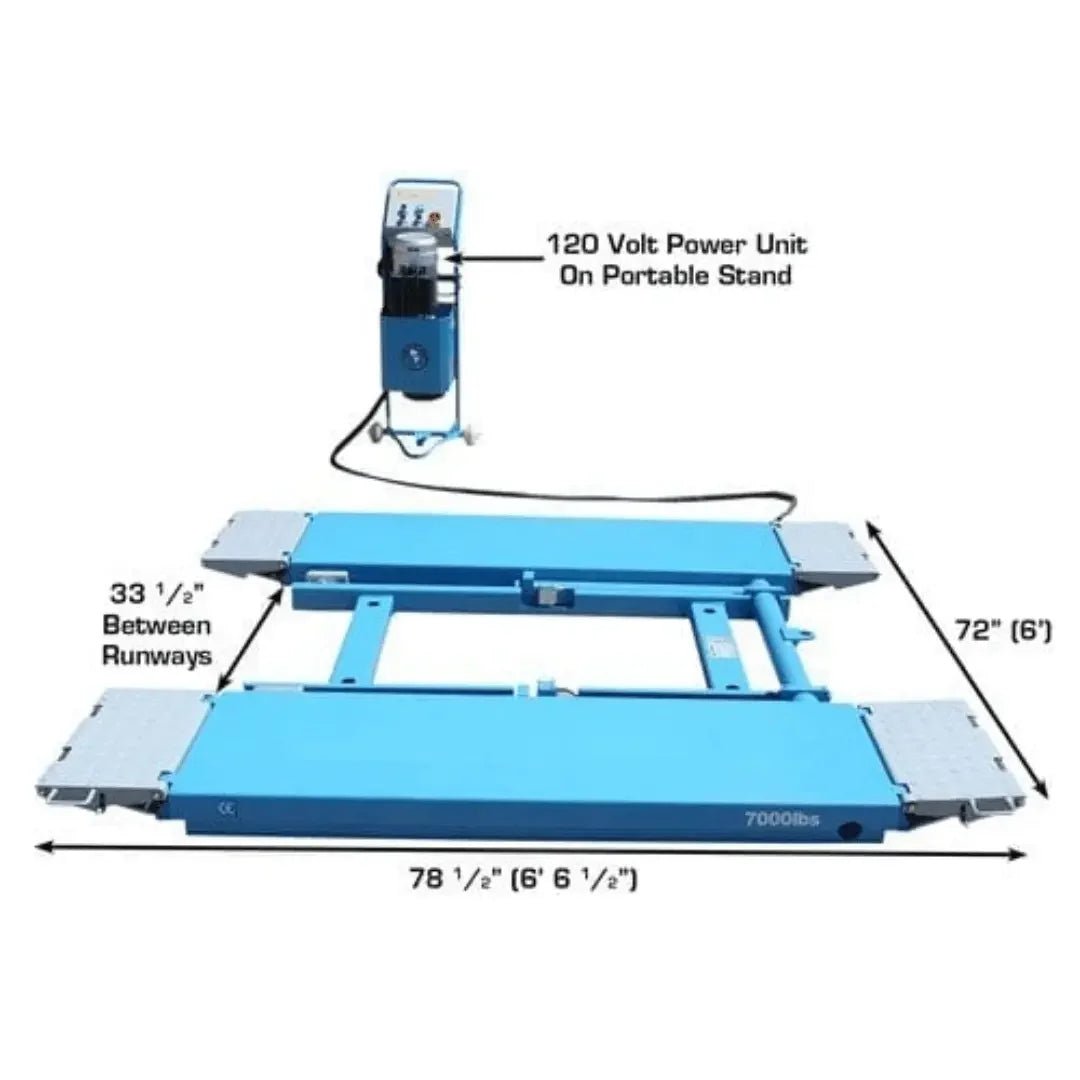

| Between Runways | 33 1/2″ |

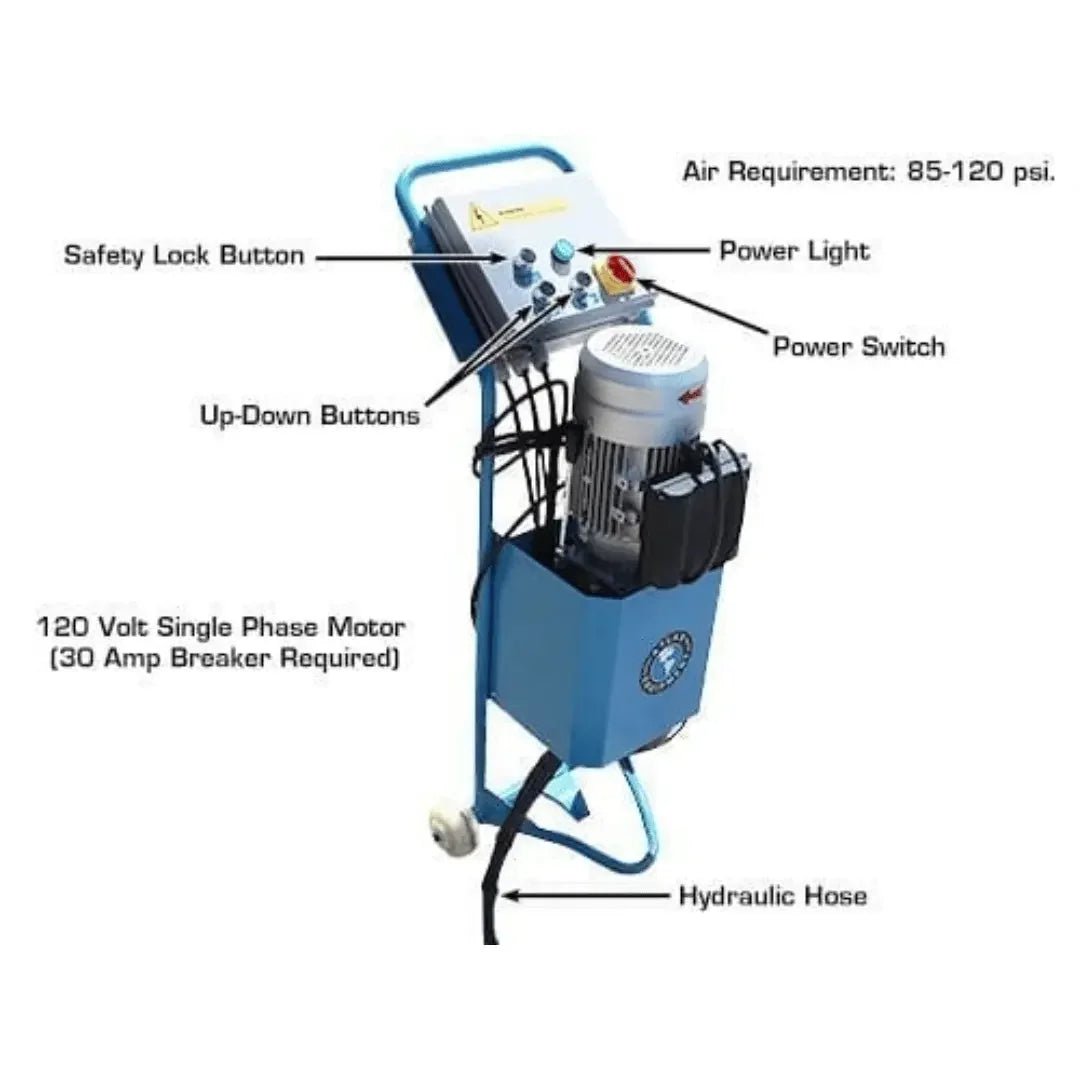

| Electrical | 110 Volt, 30amp breaker required (PLUG NOT INCLUDED) |
| Air Requirement | 90–120 PSI |
| Shipping Weight | 1,441 lbs. |
Pick Up and Delivery
Pick up locations for Atlas: Atlanta, GA; Fresno, CA; Phoenix, AZ; Indiana, IN; and New Jersey, NJ.
Call, text, or chat with us – 866-774-7743
