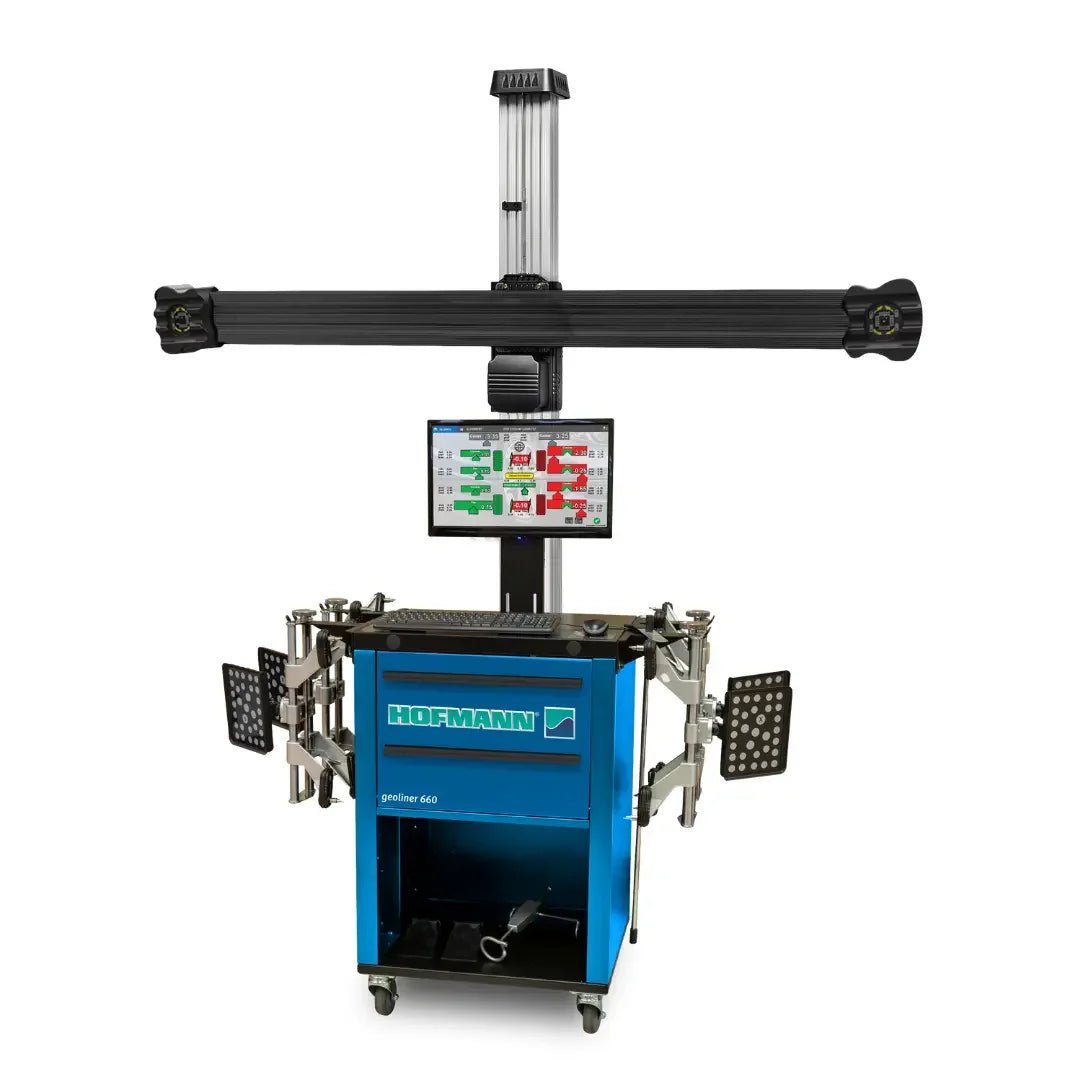

Hofmann GEOLINER 660 Imaging Wheel Aligner

Now there’s an advanced imaging alignment system that doesn’t require lots of training or experience to operate.

With the latest XD target and camera system, the geoliner® 660 Imaging Wheel Aligner features advanced technology, combined with the simplest, most intuitive software we’ve ever offered – providing the essential tools for any alignment tech to do their job quickly and accurately with ease.

XD Cameras

The geoliner® 660 Imaging Wheel Aligner’s advanced XD cameras and sophisticated monitoring algorithms find errors as they’re made, detecting problems with suspension stress and damage, rack, clamps, environment, and more – notifying users only when necessary, to save time and ensure accuracy on every alignment.

• Compensate: Error is completely compensated with no notification to the user
• Warn: Error is completely compensated with user warned when a correction was applied
• Alert: Critical error leading to a bad alignment is detected; user notified that corrective action is required

Advanced Camera Systems

No need to adjust the camera after raising the lift, thanks to the automatic camera tracking feature that delivers optimum accuracy.

High-resolution cameras produce accurate, live alignment readings and diagnostic data

Video camera monitors the alignment and provides critical information to get the job done right

Exclusive Dimensioning and Productivity Features

Vehicle track width and wheelbase

Individual wheel side set and set-back

Patented EZ-TOE eliminates the need for steering wheel holder

Guided adjustments of single tire rod, drag link and cradle

Ride Height Measurement

Manual ride height to obtain proper alignment specifications for those vehicles requiring it.

Patented EZ-TOE

Turn the front wheels and access difficult adjustment points while still displaying centered toe readings.

Manufacturer Specifications

Extensive OEM specifications allow quick and accurate vehicle selection.
